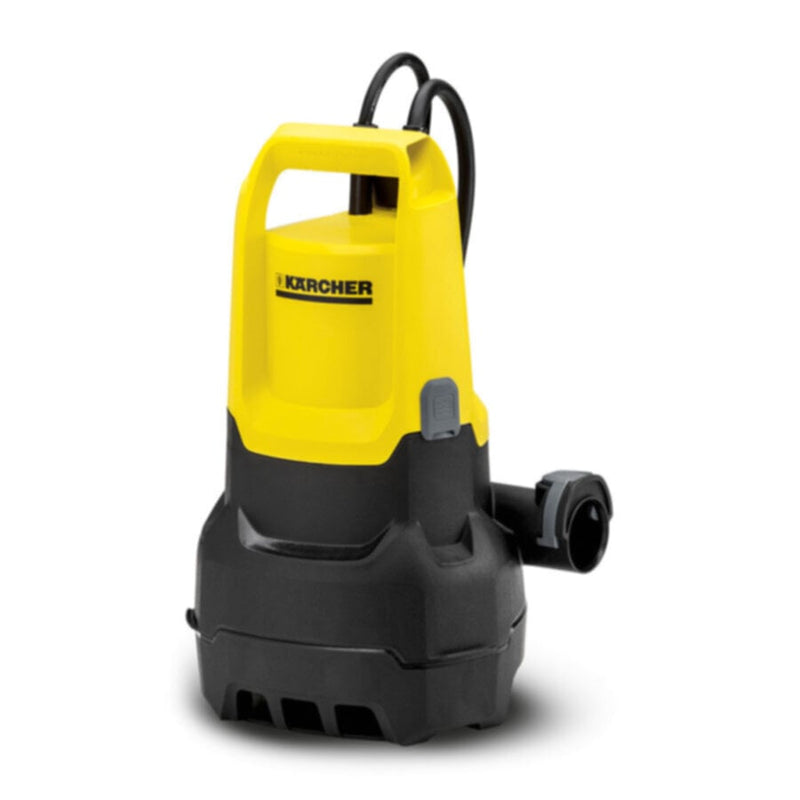

KARCHER | Submersible Pumps SP 5 Dirt EU | 1.645-503.0

Max. motor rating (W): 500
Max. flow rate (l/h): 9500
Delivery temperature, max. (-C): 35
Delivery height / Max. pressure (m/bar): 7 / 0,7
Max. grain size (mm): 20
Max. immersion depth (m): 7
Min. residual water, manual (mm): 25
Residual water height (mm): 25
Connection thread: G1
Pressure-side connection thread: G1 internal thread
Power cable (/m): H05RN-F / 10
Voltage (V): 230 - 240
Frequency (Hz): 50
Dimensions (L - W - H) (mm): 229 x 238 x 303
Weight without accessories (kg): 4,7

Equipment

Comfortable carrying handle

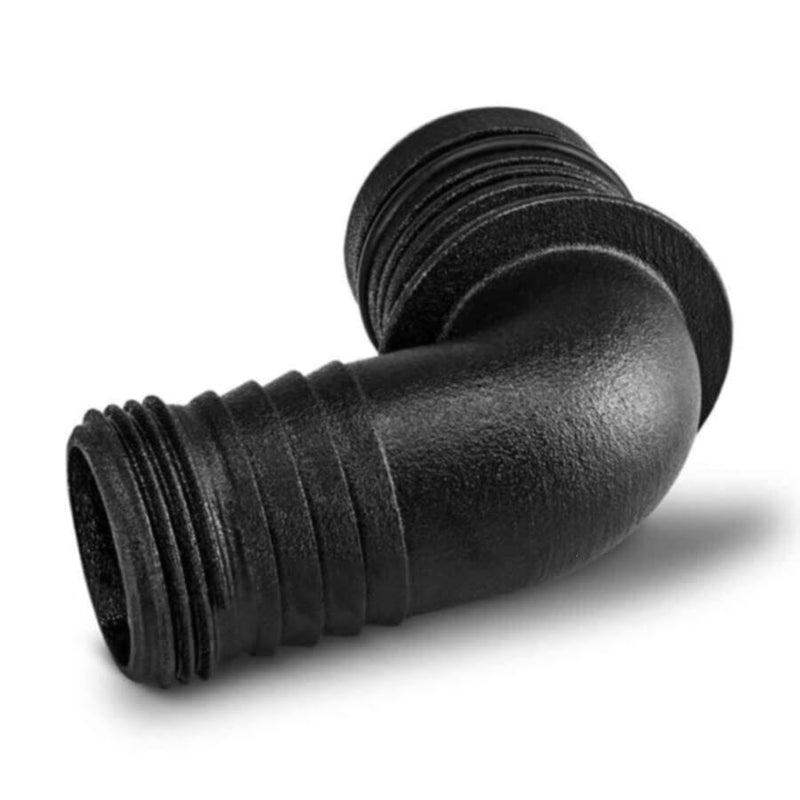

Hose connection piece, 1 1/4''
Easy hose connection thanks to Quick Connect
Switching between manual/automatic operation, Possibility of fixing the float switch
The flexible, height-adjustable float switch
In automatic operation (auto), the pump automatically switches with the water level
In manual operation, the pump runs continuously until the minimum quantity of residual water is reached

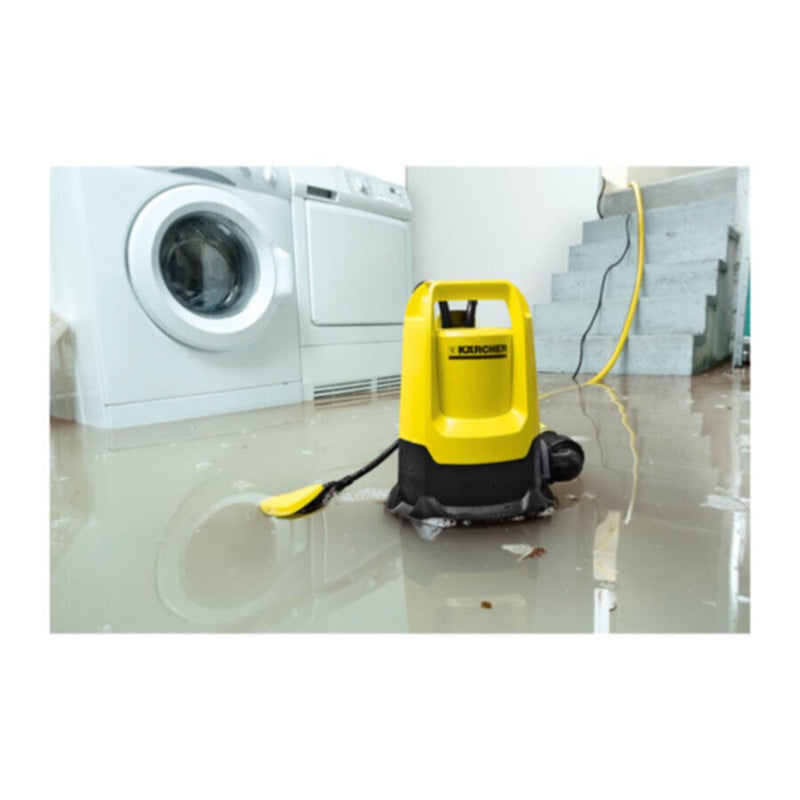

Larger water volumes are its specialty: the SP 5 Dirt dirty water pump, with a maximum capacity of 9,500 l/h, reliably pumps dirty water with dirt particles up to 20 millimeters in size, e.g. from garden ponds or flooded cellars. For larger dirt, an optional prefilter protects against blockages. The slide ring sealing, which is familiar from the professional sector, has been installed to extend the lifetime of the device. The submersible pump has a float switch for automatically switching on and off. In addition, the float is fixed to a rail and is vertically adjustable. This allows water to be pumped out at a lower level. In manual mode, it can even pump out down to a residual water level of 25 millimeters. And the Quick Connect connection thread enables particularly quick and uncomplicated connection of 1 1/4" hoses.

Ceramic face seal.

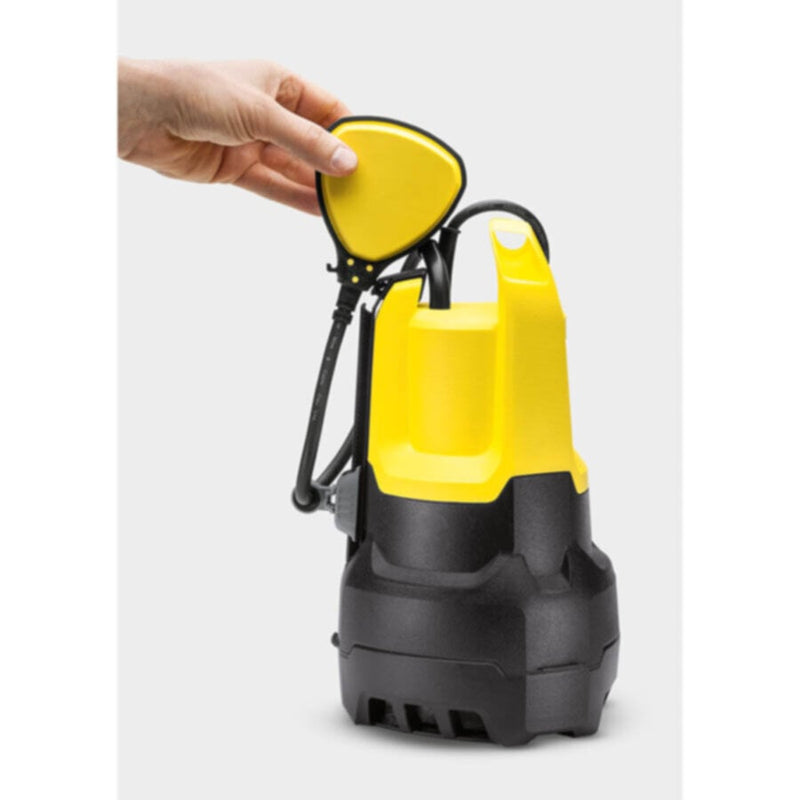

Height-adjustable float switch.

Quick Connect.
