AC current	Range	40.00 A / 400.0 A
	Accuracy	2% ± 5 digits (45 Hz to 65 Hz)
		2.5% ± 5 digits (65 Hz to 400 Hz)
DC current	Range	40.00 A / 400.0 A
	Accuracy	2% ± 5 digits
AC voltage	Range	600.0 V
	Accuracy	1.5% ± 5 digits
DC voltage	Range	600.0 V
	Accuracy	1.0% ± 5 digits
Resistance	Range	400.0 Ω / 4000 Ω / 40.00 kΩ
	Accuracy	1.0% ± 5 digits
Continuity		≤ 30 Ω
Capacitance		0 to 100.0 μF / 100μF to 1000 μF
Frequency		5.0 Hz to 500.0 Hz
AC response		True-RMS
Backlight		Yes
Data hold		Yes
Contact temperature		-10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max		Yes
Size	H x W x D (mm)	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)
	Weight	283 g
Category rating		CAT III 600 V
		CAT IV 300 V

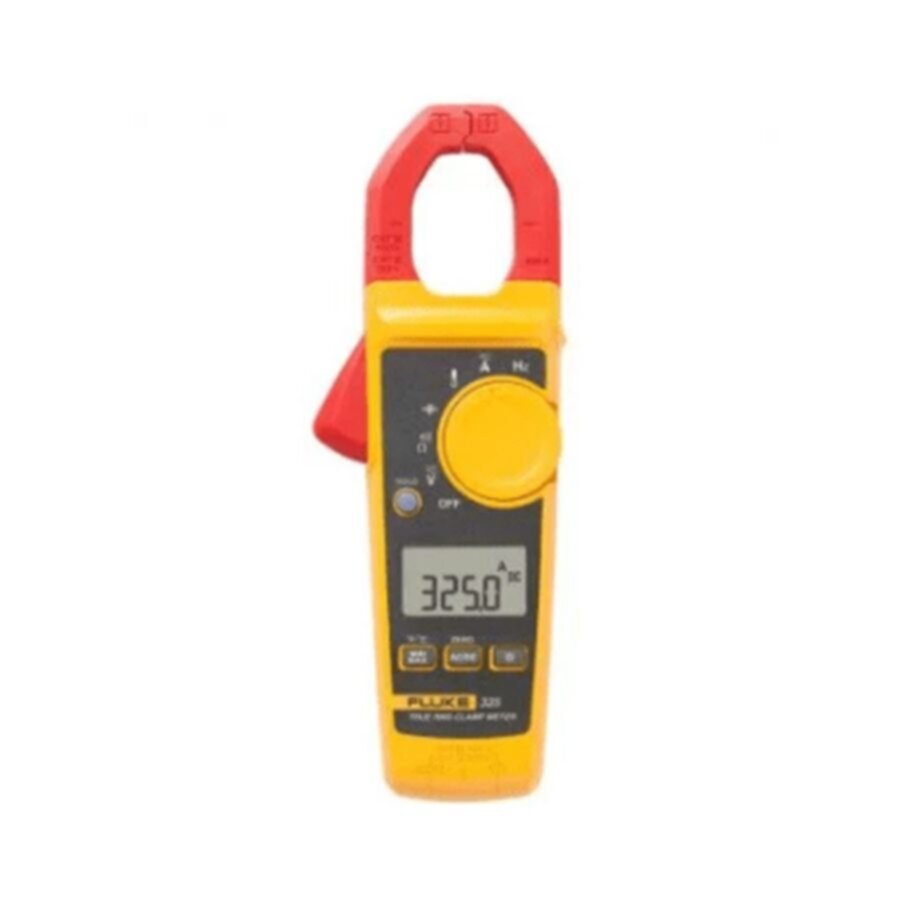

The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:

_x000D_

_x000D_
• DC current
_x000D_
• DC voltage
_x000D_
• Temperature
_x000D_
• Frequency
_x000D_

_x000D_

You’ll carry fewer tools in your bag and get more work done.

_x000D_

COVERS MOST PROBLEMS YOU SEE DAY-IN, DAY-OUT

_x000D_

The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:

◆ Measures AC/DC current up to 400 A through jaw

_x000D_

◆ AC/DC voltage to 600 V using test leads

_x000D_

◆ Measures frequency from 5 Hz to 500 Hz; resistance to 40 k?

_x000D_

◆ Measures temperature from -10 °C to 400 °C with included K-type thermocouple

_x000D_

◆ Min/Max function records important values
