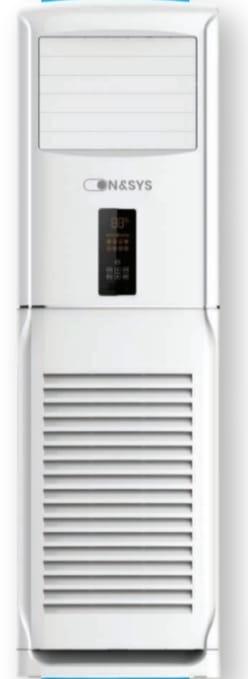

ON & SYS | Floor Standing AC | on-at3-36fs

Technical Specification

Rated Capacity: 32073 (T1) / 29125 (T3) Btu/h

Rated Power Consumption: 2730 (T1) / 3320 (T3) W

Rated Running Current: 12.4 A

Max. Input Power: 4100 W

Max. Input Current: 20 A

EER Cooling: 11.7 (T1) / 8.77 (T3) (Btu/h)/W

Power Supply Source: 220-240V~ / 50Hz

Refrigerant: R410A

Air Flow Volume: 2100 m3/h

Noise Level: 58 dB(A)

Unit Weight

Indoor Unit Weight (Net): 57 Kg

Outdoor Unit Weight (Net): 67 Kg

Indoor Unit — Evaporator Details
Rows: 3 Row

Tube Pitch: 25.4 mm

Row Pitch: 22 mm

Tube Specifications:

Material: Copper

Length: 450 mm

Diameter: 9.52 mm

Thickness: 0.27 mm

Quantity: 50 PCS

Fin Specifications:

Thickness: 0.095 mm

Fin Spacing: 1.4 mm

Fan Specifications:

Type: Cross flow fan

Material: AS

Diameter: 372 mm

Length: 180.3 mm

Net Dimension (Width × Depth × Height): 580 × 1925 × 400 mm

Compressor Model: QXAS-F325N050A

Type: Rotary

Outdoor Unit — Fan System
Fan Type: Axial flow fan

Blade Material: AS

Diameter: 550 mm

Fan Motor Model: D-90-8 310V

Motor Speed (H/M/L): 1000 / 900 rpm

Rated Input Power: 133 W

Rated Output Power: 90 W

Outdoor Unit — Condenser Details

Air Circulation: 3200 m3/h

Rows: 3 Row

Tube Pitch: 20.5 mm
Row Pitch (D): 12.7 mm

Tube Specifications:

Material: Copper

Length: 977 mm

Diameter: 7 mm

Thickness: 0.23 mm

Quantity: 54 PCS

Fin Specifications:

Thickness: 0.095 mm

Fin Spacing: 1.4 mm

Net Dimension (Width × Depth × Height): 970 × 805 × 395 mm

Packing Dimension (Width × Depth × Height): 1105 × 885 × 495 mm
