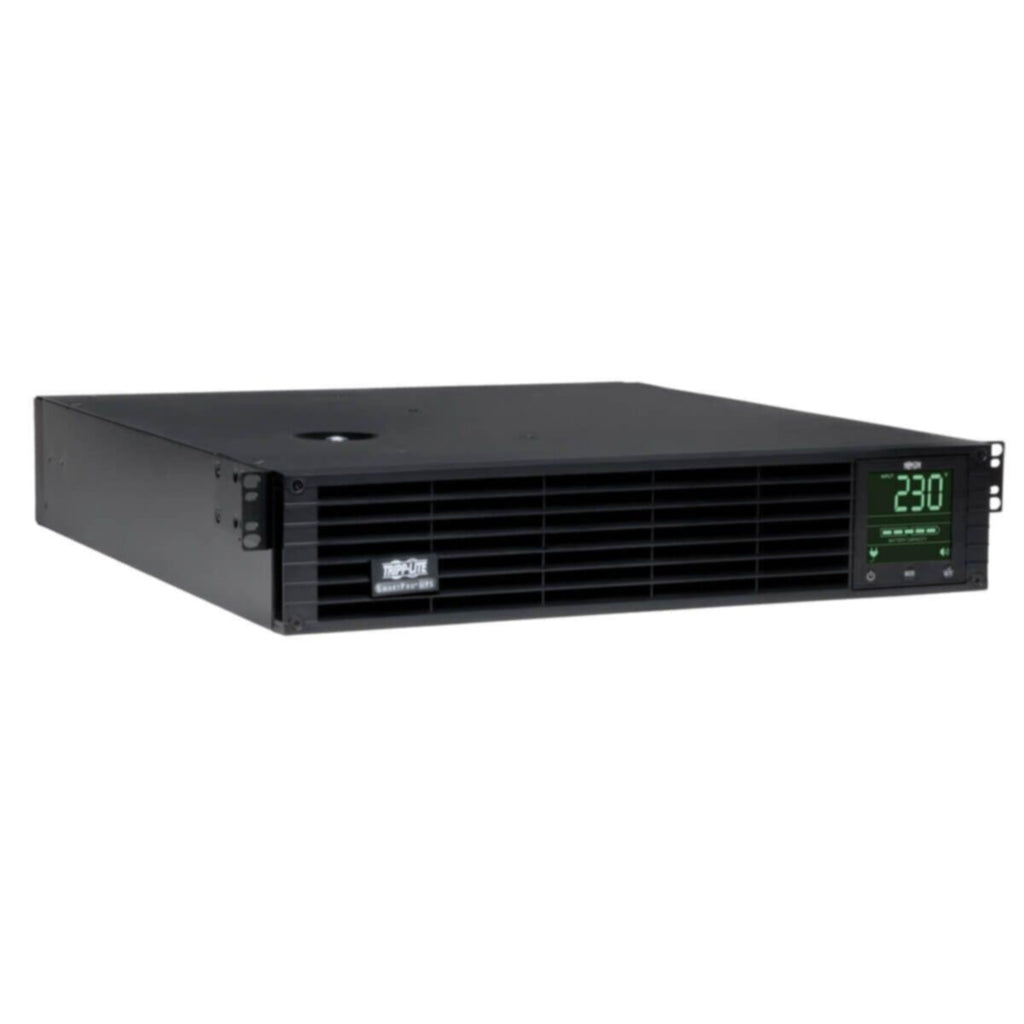

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and slot for network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert monitoring software is available for free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Features

• Tripp Lite SMX3000XLRT2UA line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity and extended runtime options
• Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 158 to 278V
• C20 AC power inlet; 8 C13 and 1 C19 output receptacles, Two independently switchable output load banks
• Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
• High 98% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
• Internal batteries offer 11.1 minutes at 50% load (1350W) and 3.9 minutes at 100% load (2700W)
• Extended runtime is available with optional external battery packs BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible)
• External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
• Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
• Intelligent battery management system extends battery life
• Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
• LCD interface also supports a number of advanced user setup and operating preferences
• Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
• Built-in USB, RS-232 and slot for optional network management card options
• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from poweralert
• Built-in Emergency Power Off (EPO) interface with cable

Package Includes

• UPS system
• USB, Serial & EPO cabling
• 4 post rackmount installation kit
• Set of 3 C13/C14 power cables
• Instruction manual

Specifications

OVERVIEW

• UPC Code: 037332181381
• UPS Type: Line-Interactive

OUTPUT

• Output Volt Amp Capacity (VA): 3000
• Output kVA Capacity (kVA): 3.00
• Output Watt Capacity (Watts): 2700
• Output kW Capacity (kW): 2.70
• Power Factor : 0,9
• Nominal Voltage Details: 230v nominal inverter output voltage
• Frequency Compatibility: 50 / 60 Hz
• Frequency Compatibility Details: Automatic frequency selection
• Output Voltage Regulation (Line Mode): +6%, -15%
• Output Voltage Regulation (Battery Mode): +/-5%
• Included Output Power Cables: Set of 3 C13 to C14 power cables included
• Load Management Receptacles : Two switchable single outlet C13 load banks
• Output AC Waveform (AC Mode): Pure Sine wave
• Output AC Waveform (Battery Mode): Pure Sine wave
• Nominal Output Voltage(s) Supported: 220V; 230V; 240V
• Output Receptacles: (8) C13; (1) C19
• Individually Controllable Load Banks : Yes

INPUT

• Rated input current (Maximum Load): 14.1A
• Nominal Input Voltage(s) Supported: 230V AC
• UPS Input Connection Type: C20 inlet
• UPS Input Connection Description: IEC320-C20 input connection accepts a variety of user supplied detachable C19 output cordsets to match country or site specific power sources
• Input Circuit Breakers: 20A
• Input Phase: Single-Phase

BATTERY

• Full Load Runtime (min.) : 3.9 min. (2700w)
• Half Load Runtime (min.) : 11.1 min. (1350w)
• Expandable Battery Runtime: Extended runtime supported via optional external battery packs
• External Battery Pack Compatibility : BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
• DC System Voltage (VDC): 48
• Battery Recharge Rate (Included Batteries): Less than 5 hours from 10 to 90% (typical, full load discharge)
• Internal UPS Replacement Battery Cartridge: RBC58-2U
• Battery Access: Front panel battery access door
• Battery Replacement Description: Hot-swappable, replaceable batteries
• Expandable Runtime: Yes

VOLTAGE REGULATION

• Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278
• Overvoltage Correction : Input voltages between 244 and 278 are reduced by 12%
• Undervoltage Correction : Input voltages between 206 and 183 are boosted by 12%
• Severe Undervoltage Correction: Input voltages between 158 and 183 are boosted by 24%

USER INTERFACE, ALERTS & CONTROLS

• Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
• Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
• Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
• Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

SURGE / NOISE SUPPRESSION

• UPS AC Suppression Joule Rating: 350
• EMI / RFI AC Noise Suppression : Yes
• AC Suppression Response Time : Instantaneous

PHYSICAL

• Cooling Method: Fan
• Included Mounting Accessory Description: Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
• Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
• Installation Form Factors Supported with Optional Accessories: 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
• Minimum Required Rack Depth with External Battery Pack (cm): 67
• Minimum Required Rack Depth with External Battery Pack (in.): 26.5
• Minimum Required Rack Depth without External Battery Pack (cm): 58
• Minimum Required Rack Depth without External Battery Pack (in.): 23
• Optional Mounting Accessory Notes: Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
• Primary Form Factor: Rackmount
• Primary UPS Depth (mm): 495
• Primary UPS Height (mm): 89
• Primary UPS Width (mm): 445
• Rack Height: 2U
• Shipping Dimensions (hwd / cm): 22.86 x 60.32 x 52.07
• Shipping Weight (kg): 40.37
• UPS Housing Material: Steel
• UPS Power Module Dimensions (hwd, cm): 8.89 x 44.45 x 49.53
• UPS Power Module Weight (kg): 28.49

ENVIRONMENTAL

• Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
• Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
• Relative Humidity: 0 to 95%, non-condensing
• AC Mode BTU / Hr. (Full Load) : 158
• Battery Mode BTU / Hr. (Full Load) : 1501
• AC Mode Efficiency Rating (100% Load): 98%
• Audible Noise: 45 dBA maximum, front side 1m

COMMUNICATIONS

• Network Management Cards: SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD
• Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
• PowerAlert Software: For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at poweralert
• Communications Cable: USB, DB9 and EPO cabling included
• WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
• Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

LINE / BATTERY TRANSFER

• Transfer Time : 6 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)
• Low Voltage Transfer to Battery Power (Setpoint): 158
• High Voltage Transfer to Battery Power (Setpoint): 278

SPECIAL FEATURES

• Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
• High Availability UPS Features: Hot swappable batteries
• Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks; Schedulable daily hours of economy mode operation

CERTIFICATIONS

• UPS Certifications: CE; ROHS (Restriction of Hazardous Substances)
• UPS Certification Details: IEC 62040-1, IEC 62040-2 Class A EMI, GOST

WARRANTY

• Product Warranty Period (Worldwide): 2-year limited warranty
