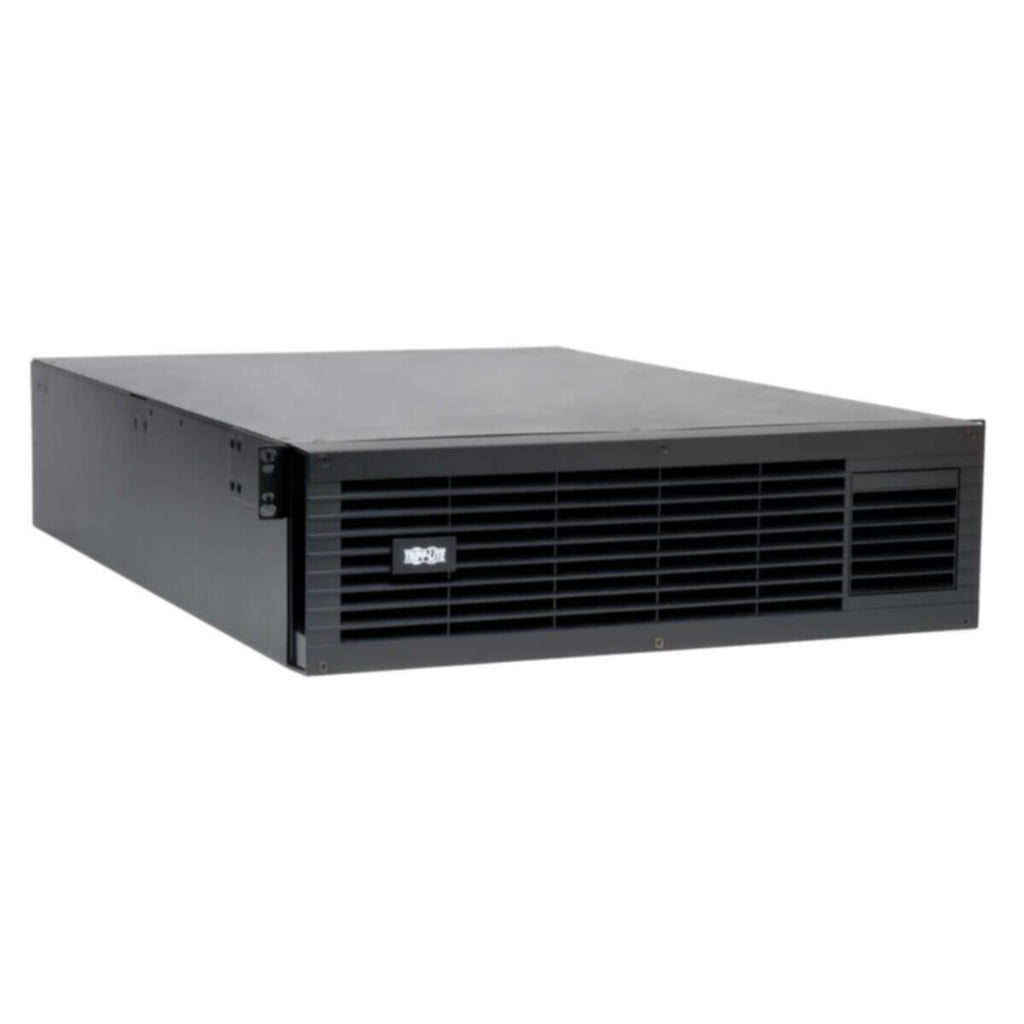

TRIPP LITE | Rack/Tower Battery Pack For Select UPS Systems 192V 3U | BP192V12-3U

Tripp Lite's BP192V12-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Multi-use form factor supports configuration in rackmount or stacking applications using only 3 rack spaces (3U). Upright tower configuration supported with optional 2-9USTAND accessory. Includes heavy-gauge cabling with high-current DC connectors for simple installation. Additional output connector allows multiple BP192V12-3U battery packs to be daisy-chained to the UPS for even longer extended run operation.

COMPATIBLE UPS SYSTEMS - SU12KRT4UHW, SU5000RT4U, SU5000RT4UHV, SU5000RT4UTF, SU6000RT4U, SU6000RT4UHV, SU6000RT4UHVG, SU6000RT4UHVHW, SU6000RT4UTF, SU6000RT4UTFHW, SU8000RT4U and other Tripp Lite UPS systems that specify the use of this battery pack.

• Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
• Supports stacking or rackmount installation using only 3 rack spaces (3U)
• Supports upright tower installation with optional 2-9USTAND accessory (holds 3 battery packs in tower configuration)
• Set of two input/output connectors allows multiple BP192V12-3U battery packs to be daisy-chained to the UPS for even longer extended run operation
• Includes heavy-gauge cabling with high-current DC connectors for simple installation

Package Includes

• External battery pack
• Mounting hardware
• Warranty information
• Instruction manual

Specifications

OUTPUT

• Overload Protection: 50A DC output fuse

INPUT

• UPS Input Cord Length (ft.): 3
• UPS Input Cord Length (m): 0.9
• Input Phase: Single-Phase

BATTERY

• Expandable Battery Runtime: Includes a second input/output connector to daisy-chain multiple battery packs
• DC System Voltage (VDC): 192
• UPS Connection: Detachable cable with UPS specific DC connector (90 cm length, 8 gauge)
• Typical Battery Lifespan: 4-6 years typical
• Expandable Runtime: Yes

PHYSICAL

• External Battery Pack Form Factor: Rack/Tower
• Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
• Installation Form Factors Supported with Optional Accessories: 2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )
• Material of Construction: Black steel cabinet
• Minimum Required Rack Depth (cm): 91.44
• Shipping Dimensions (hwd / cm): 27.94 x 58.42 x 83.82
• Shipping Weight (kg): 88.00
• Unit Dimensions (hwd / cm): 13,3 x 44,5 x 71,1
• Unit Weight (kg): 78.93


WARRANTY

• Product Warranty Period (International): 1-year limited warranty
