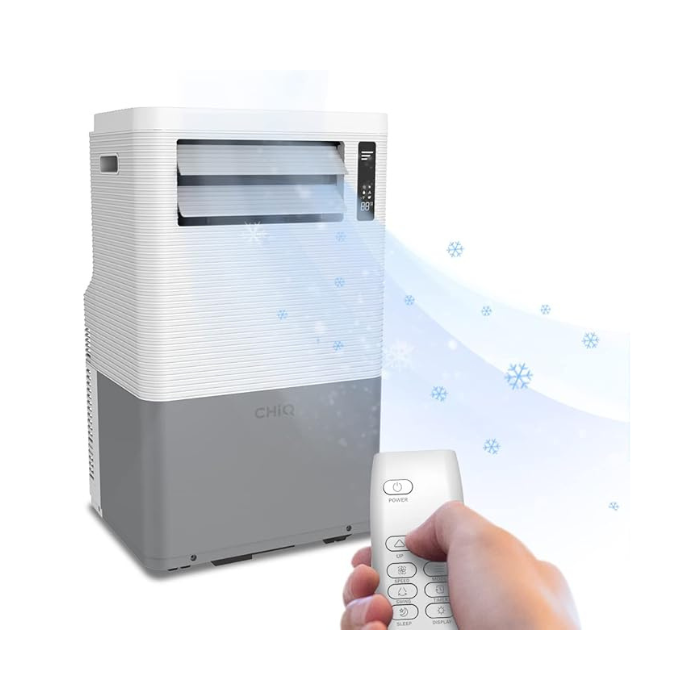

CHIQ | 1 Ton Portable AC CHP 12K | RCQPACQCHP12K

FEATURES:

✅ The CHiQ Portable AC CHP 12K - 1 Ton delivers powerful and efficient cooling for spaces up to 1 ton capacity.

✅ With a compact, portable design, it offers convenience, adjustable settings, and energy-efficient performance, perfect for home or office use.

Technical Specification

Department: Home Appliances

Brand: CHiQ

Color: White

Tonnage: 1 ton

Cooling Capacity: 12000 BTU

Outdoor Unit (Compressor Type): Rotary

Refrigerant: R410a

Model: 2023-DP-087

Factory Model: 12K

Climate Type: T1

Indoor Unit: P01

Outdoor Unit: P01

Panel: PA

Power supply: 220V/50Hz

Power Supply Mode: Indoor

Control type: Remote

Cooling Capacity: 12000 BTU

Moisture removal: 1.2 L/h

Compressor Model: ASM130V01UDZ

Type: Rotary

Brand: GMCC

Locked rotor Amp(LRA): 25 A

Capacitor: 40 uF

Brand: SA(AL)8A

Capacitor: 1

Motor speed (TU/Hi/Mi/Lo): 1300 RPM

a.Number of rows: 2

b.Tube pitch(a)x row pitch(b): 21x12.7 mm

c.Fin material: Hydrophilic

d.Tube outside dia.and type: Φ7 mm

e.Coil length x height x width: 308x241.5x25.4 mm

Indoor air flow: 340/300/260 m3/h<p>

Noise level:  54/52/50 dB(A)

Unit dimension (W*H*D: 327*441*700 mm

Packing (W*H*D): 402*506*885

Brand: SA(AL)23E

Capacitor: 2 uF

Motor speed: 930

a.Number of rows: 3

b.Tube pitch(a)x row pitch(b): 19.5x11.6 mm

c.Fin material: Hydrophilic

d.Tube outside dia.and type: Ф5 mm

e.Coil length x height x width: 230x312x34.8 mm

Noise level: 54/52/50 dB(A)

Unit dimension (W*H*D): 327*441*700 mm

Packing (W*H*D): 402*506*885 mm

Refrigerant type: R410a

Refrigerant charge: 0.37

Ambient Working Temperature Range(°C) Cooling-Outdoor: 16~43

Loading Qtys (40'HQ): 00

Noise Level (Indoor, High/Low, dBA):  54/52/50 dB(A)

Noise Level (Outdoor, High/Low, dBA): 54/52/50 dB(A)

Power Source(V/Hz): 220V/50Hz
