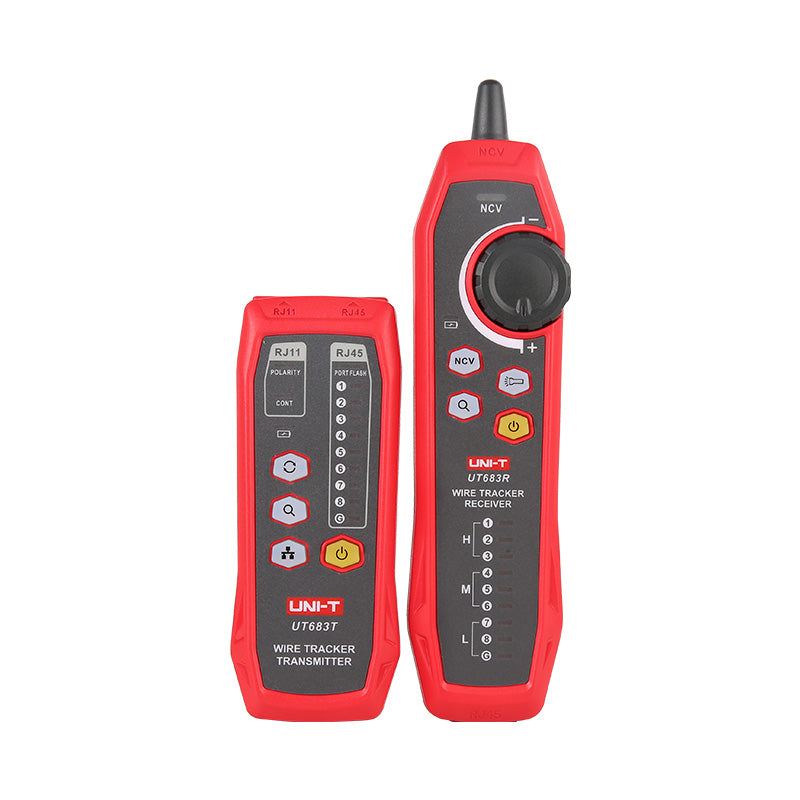

UNI-T | Wire Tracker | UT683KIT

✅ The UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability.

✅ The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.

✅ Line function

✅ NCV function

✅ Withstand voltage DC 60V

✅ Port flashes

Technical Specification

Certificates: CE, RoHS

Port flashing: ✔

Wire tracking: ✔

Line alignment: ✔

Open-short test: 10kΩ

Polarity test: ✔

Operating time: ＞8 hours

Wire tracking: RJ11＞3000m; RJ45＞100m

NCV function: ✔

Headset jack: 3.5mm

Low battery indication: ✔

Operating time: ＞5 hours

Power: 1050mAh rechargeable lithium battery

Transmitter: around 95g; Receiver: around 127g

Transmitter-130mm x 51mm x 28mm; Receiver-197mm x 48mm x 34mm

Standard accessories: USB cable, RJ11 aligator clip test cable, RJ45 test cable, RJ11 test cable, English manual

Standard individual packing: Gift box, carrying bag

Standard quantity per carton: 20pcs

Standard carton measurement: 480mm x 370mm x 325mm

Standard carton gross weight: About 10kg
