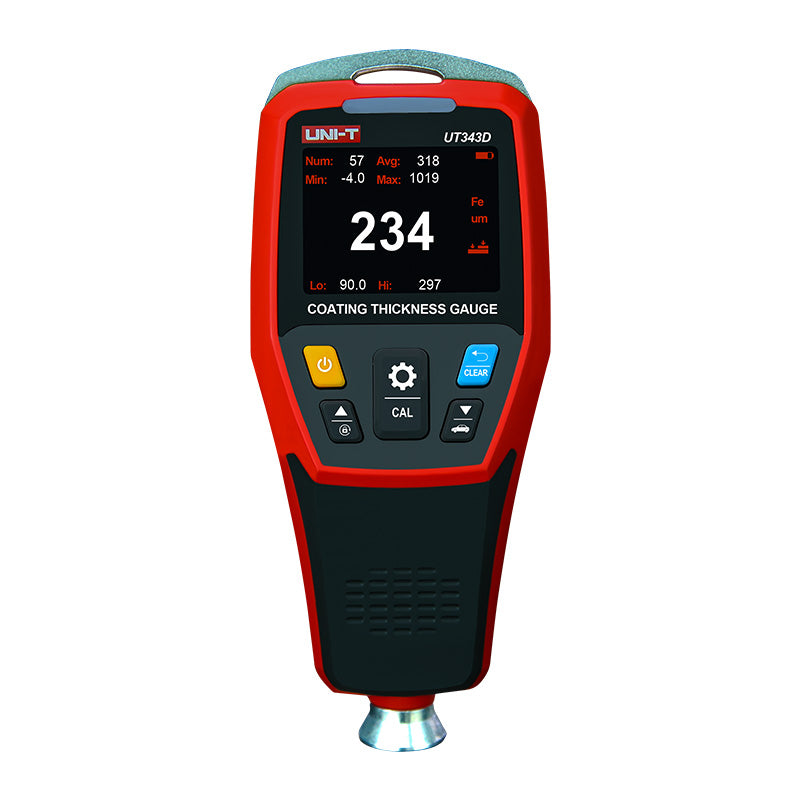

UNI-T | Coating Thickness Gauge | UT343D

✅ UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials.

✅ This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.

✅ UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical

✅ software that is included.

✅ LCD brightness control

✅ Auto rotatable screen

✅ Unit conversion

✅ Audio alarm

✅ LED alarm

✅ PC analysis software

✅ USB communication

✅ Quick test mode

✅ Auto power off

✅ Low battery indication

Technical Specification

Measuring range: 0~1250um

Accuracy: ±(3%H+1)um

Resolution: 0.1um (0~99.9um); 1um (100~1250um)

Measurement method: Single/Continuous

Measurement mode: Max/Min/Avg

Metal type: Ferrous/ non-ferrous

Display type: 2.0-inches TFT LCD (320 x 240 pixels)

LCD brightness control: √

Auto rotatable screen: √

Unit conversion: √

Audio alarm: √

LED alarm: √

PC analysis software: √

USB communication: √

Quick test mode: √

Data storage: 500 groups

Auto power off: √

Low battery indication: √

Power: 1.5V AA battery x 2

Display: 48mm x 36mm

Product color: Red and grey

Product net weight: 175g

Product size: 153.5mm x 64.5mm x 41mm

Standard accessories: Micro USB interface cable, standard piece, batteries, cloth bag

Standard individual packing: Gift box, English manual

Standard quantity per carton: 20pcs

Standard carton measurement: 355mm x 320mm x 195mm

Standard carton gross weight: 7.5kg
