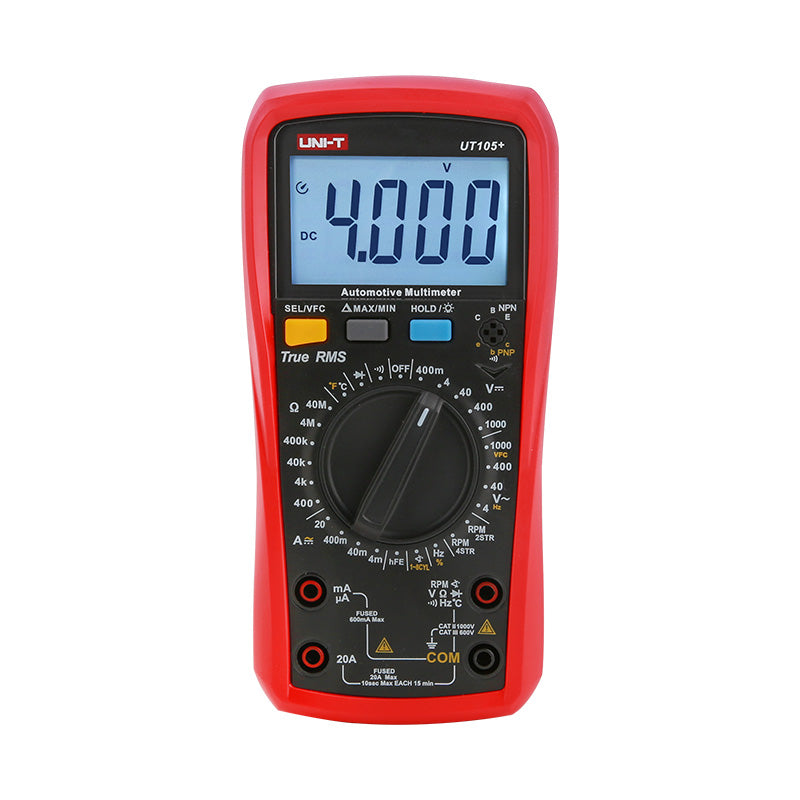

UNI-T | Automotive Multimeters | UT105+

✅ UT105+ and UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles.

✅ This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well.

✅ 1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance.

✅ Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems.

✅ UT105+ and UT107+ are both True RMS automotive multimeters that meet CAT II 1000V/CAT III 600V safety rating. UT105+ is designed for basic vehicle troubleshooting with 4000 counts display.

✅ UT107+ supports some extra functions, such as battery test, pulse width, capacitance with 6000 counts display.

True RMS

✅ 1000V AC/DC voltage measurement

✅ 20A AC/DC current measurement (20A for 10s max)

✅ VFC 1000V voltage measurement

✅ Dwell angle 1-8CYL

✅ RPM 2STR/4STR

✅ Capacitance/Pulse width/12V battery test (UT107+)

✅ Temperature/Resistance/Frequency

✅ Data hold/Relative mode/Duty cycle

✅ Diode/Transistor

✅ Backlight

✅ CAT II 1000V / CAT III 600V

Technical Specification

DC voltage (V): 400mV/4V/40V/400V/1000V,±(0.5%+3)

AC voltage (V): 4V/40V/400V/1000V, ±(0.8%+3)

AC current (A): 4mA/40mA/400mA/10A (20A for 10s max), ±(1.0%+8)

DC current (A): 4mA/40mA/400mA/10A (20A for 10s max), ±(0.8%+8)

Resistance (Ω): 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ, ±(0.8%+3)

Capacitance (F): 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF

Frequency (Hz): 10Hz~10MHz, ±(0.1%+5）

Temperature (℃): -40℃~1000℃, ±(1.0%+3)

Temperature (℉) : 40℉~1832℉

, ±(1.5%+5)

VFC: 1000V,±(2.0%+10)

RPM: 2STR, ±(3.0%+5)

Dwell: angle,1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°)

Pulse width: 999.9mS

Power: AAA 1.5V x2

Product color: Red+Gray

Product net weight: 348g (Including batteries)

Product size: 183 x 88 x 56mm

Standard accessories: English manual,test leads,batteries,temperature probe

Standard individual packing: Gift box,carrying bag

Standard quantity per carton: 20 pcs

Standard carton measurement: 420×320×300mm
