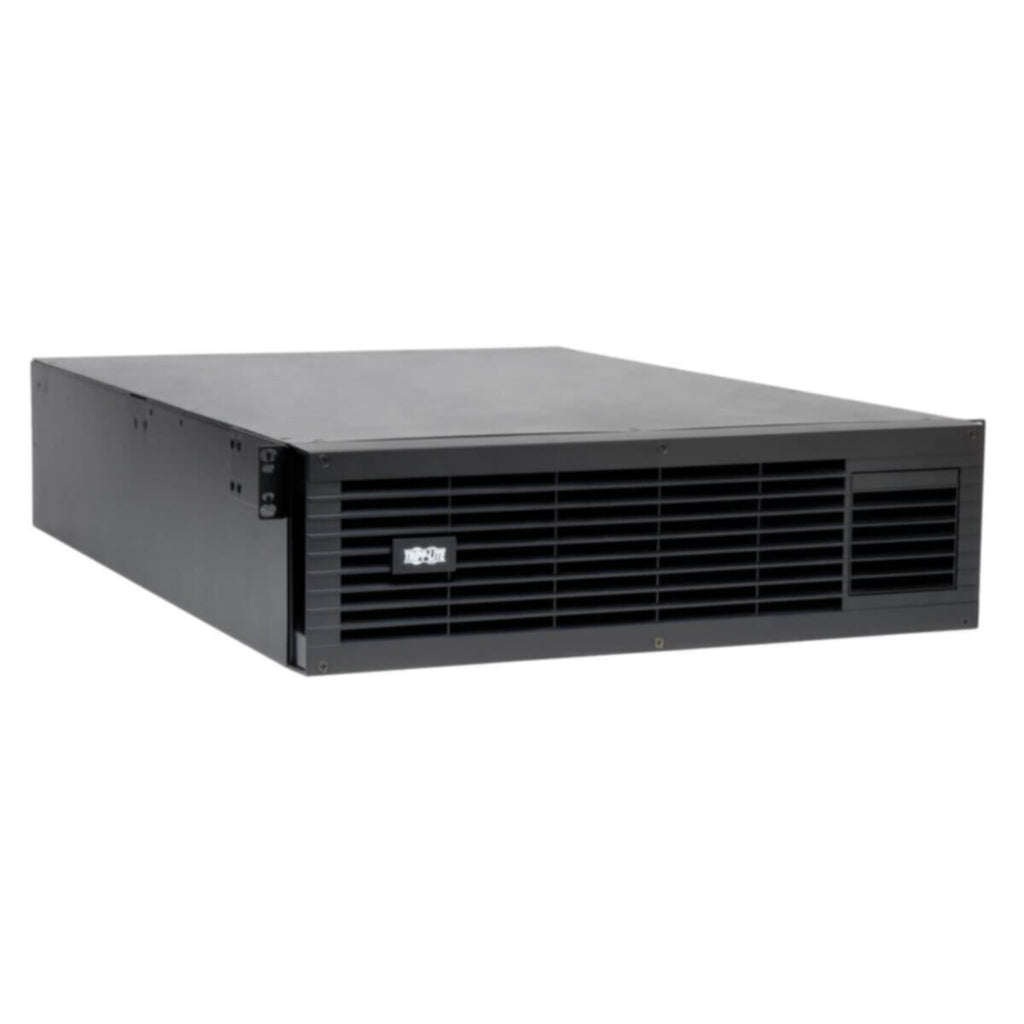

Tripp Lite's BP192V12 3U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Multi use form factor supports configuration in rackmount or stacking applications using only 3 rack spaces (3U). Upright tower configuration supported with optional 2 9USTAND accessory. Includes heavy gauge cabling with high current DC connectors for simple installation. Additional output connector allows multiple BP192V12 3U battery packs to be daisy chained to the UPS for even longer extended run operation.

COMPATIBLE UPS SYSTEMS SU12KRT4UHW, SU5000RT4U, SU5000RT4UHV, SU5000RT4UTF, SU6000RT4U, SU6000RT4UHV, SU6000RT4UHVG, SU6000RT4UHVHW, SU6000RT4UTF, SU6000RT4UTFHW, SU8000RT4U and other Tripp Lite UPS systems that specify the use of this battery pack.

• Offers extended run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
• Supports stacking or rackmount installation using only 3 rack spaces (3U)
• Supports upright tower installation with optional 2 9USTAND accessory (holds 3 battery packs in tower configuration)
• Set of two input/output connectors allows multiple BP192V12 3U battery packs to be daisy chained to the UPS for even longer extended run operation
• Includes heavy gauge cabling with high current DC connectors for simple installation

Package Includes

• External battery pack
• Mounting hardware
• Warranty information
• Instruction manual

Specifications

OUTPUT

• Overload Protection: 50A DC output fuse

INPUT

• UPS Input Cord Length (ft.): 3
• UPS Input Cord Length (m): 0.9
• Input Phase: Single Phase

BATTERY

• Expandable Battery Runtime: Includes a second input/output connector to daisy chain multiple battery packs
• DC System Voltage (VDC): 192
• UPS Connection: Detachable cable with UPS specific DC connector (90 cm length, 8 gauge)
• Typical Battery Lifespan: 4 6 years typical
• Expandable Runtime: Yes

PHYSICAL

• External Battery Pack Form Factor: Rack/Tower
• Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
• Installation Form Factors Supported with Optional Accessories: 2 post rackmount ( 2POSTRMKITHD ); Tower ( 2 9USTAND )
• Material of Construction: Black steel cabinet
• Minimum Required Rack Depth (cm): 91.44
• Shipping Dimensions (hwd / cm): 27.94 x 58.42 x 83.82
• Shipping Weight (kg): 88.00
• Unit Dimensions (hwd / cm): 13,3 x 44,5 x 71,1
• Unit Weight (kg): 78.93

WARRANTY

• Product Warranty Period (International): 1 year limited warranty
