Channel and power

• No. of Channels: Mono
• Max. Wattage (4 ohms): 600Wx1
• Max. Wattage  (2 ohms): 1000Wx1
• Max. Wattage  (1 ohm): 1600Wx1
• Wattage RMS (4 ohm <= 1% THD+N): 300W (20-240Hz)
• Wattage RMS (2 ohm <= 1% THD+N): 500W (100Hz)
• Wattage RMS (1 ohm <= 1% THD+N): 800W (100Hz)
• Wattage RMS (4 ohm, Bridged): 0

General Features

• Distortion (100Hz, 4 ohm, 10w): < 0.5%
• S/N Ratio (IEC-A/IHF-A N/W): >100dB
• Frequency response: 10-240Hz (0,-3dB)
• Max. Input Level (RCA): 6.5V (Low)
• Max. Input Level (SP-Input): 16v (High)
• Load Impedance: 1-8 ohm
• Amplifier Class: Class D
• Transistor: MOSFET
• Input level control (RCA-IN): (200mv-6.5v)
• Input level control (SP-IN): (0.8v-16v) (High)
• Frequency: 50Hz
• Bass Boost: 0-18dB
• Bass Boost Remote: Yes
• Low Pass Filter: 40-240Hz, -12dB/oct
• High Pass Filter: 0
• Protection Indicator: RED (Side Panel)
• Power Indicator: BLUE (Side Panel)

Accessory

• Speaker input cable: 20cm
• Bass Remote Cord: 5m
• Hex Wrench: Yes
• Mounting screws: 4 piece
• Owner's manual: Yes
• WARRANTY CARD: Yes

Others

• Chassis size (W x H x D): 252 mm x 60 mm x 215 mm

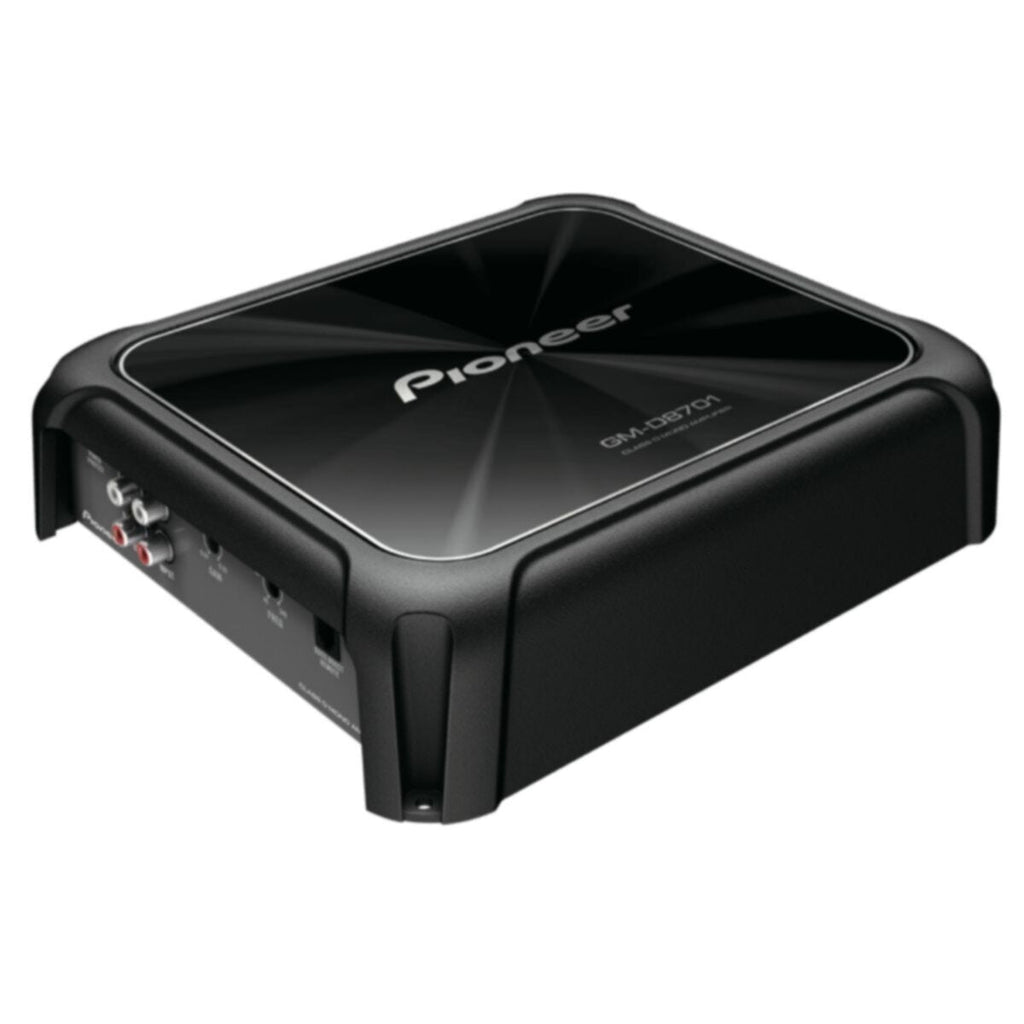

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amp might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility, and superior high-power output.

Features of GM-D8701

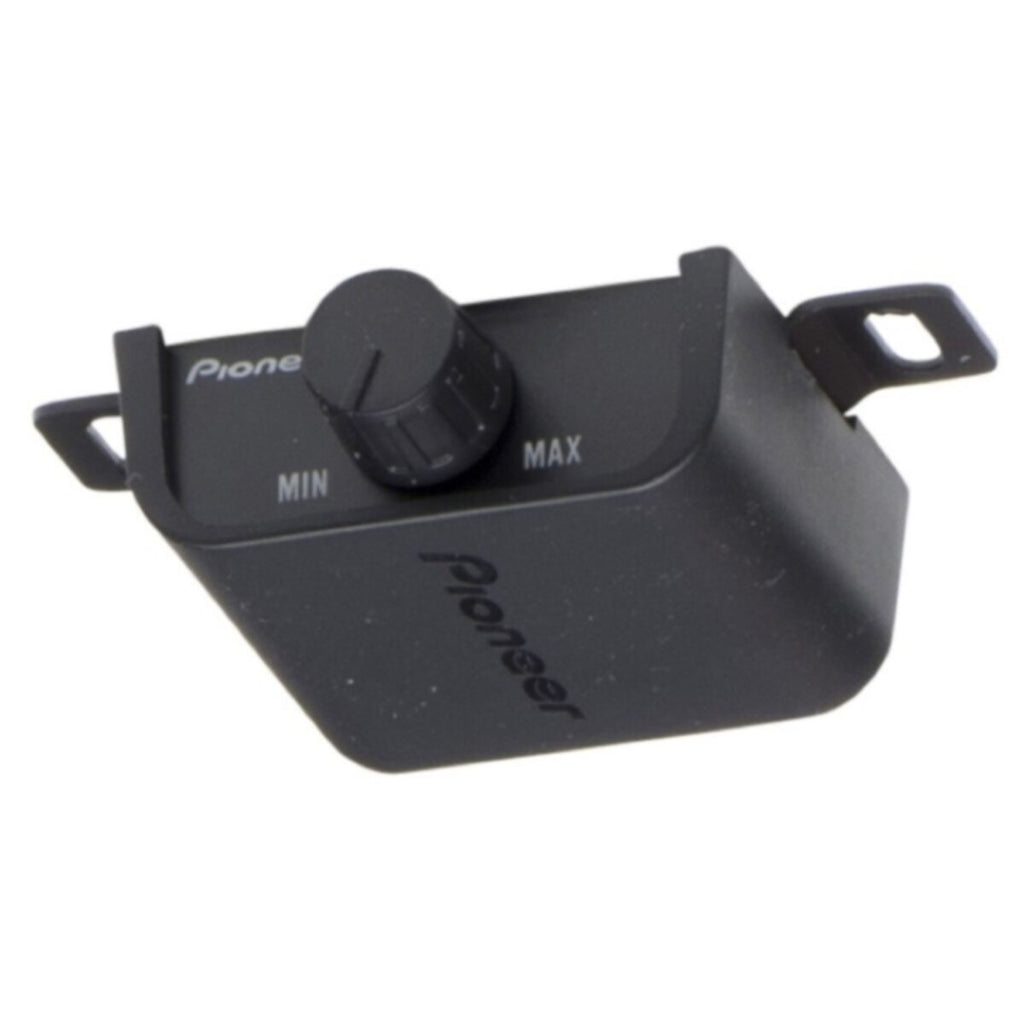

Bass Boost Remote

Every new class D Amplifier has a Bass Boost Remote Controller for optimal bass level adjustment according to listening preferences and music characteristics.

---

Highly Reliable Circuit Design

To prevent circuit shutdown, Pioneer’s new digital amplifier circuit “Protection Control System” senses its internal temperature and automatically moderates input level accordingly Stable Durable Circuitry lessens the risk of high input power for the unit to achieve 1-ohm connection. This design enhances the flexibility to connect multiple subwoofers to a system.

---

Other features of GM-D8701

Variable LPF

For extra flexibility, variable LPF make audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D8701 LPF is adjustable from 40 Hz to 240 Hz.

Automatic Signal Sensing & Turn ON

Pioneer Class D Amplifier automatically select an input signal mode between the RCA Level and the speaker level selecting an input signal.

â—† Bass Boost Remote.

â—† Highly Reliable Circuit Design.

â—† Variable Low-Pass Filter - 40 Hz to 240 Hz.

â—† Protection Control System (PCS)

â—† Automatic Signal Sensing & Turn ON.

â—† 1,600 Watts Max Power.

â—† High Quality Textured Flat Panel and Tough Frame.
