Face Detection And Analytics

• Face Picture Library: 32 libraries " 100, 000 pictures
• Face Detection And Analytics: 8 ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
• Face Picture Comparison: 16 ch face pictures comparison alarm, Alarm linkage actions: recording, audio
• Alarm: warning, notify surveillance center, send email
• Face Picture Search: Search by picture is supported

Human/Vehicle Analysis

• False Alarm Filtering: Up to 16 ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

Video And Audio

• IP Video Input: 16 ch " Up to 12 MP resolution
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI 1 Output: 4K (3840 — 2160)/60Hz, 4K (3840 — 2160)/30Hz, 2K (2560 — 1440)/60Hz, 1920 — 1080/60Hz, 1600 — 1200/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz
• HDMI 2 Output: 1920 — 1080/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz
• VGA Output: 1920 — 1080/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz, HDMI1/VGA Simultaneous Output
• CVBS Output: 1 ch, BNC (1.0 Vp p, 75 ), resolution: PAL: 704 — 576, NTSC: 704 — 480
• Audio Output: 1 ch, RCA (Linear, 1 K )
• Two Way Audio: 1 ch, RCA (2.0 Vp p, 1 k )

Decoding

• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Live View / Playback Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 16 ch
• Capability: 16 ch @ 1080p

Network

• Remote Connection: 128
• Network Protocols: TCP/IP, DHCP, Hik Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP , HTTPS
• Network Interface: 1, RJ 45 10/100/1000 Mbps self adaptive Ethernet interface

PoE

• Interface: 16 RJ 45 10/100 Mbps self adaptive Ethernet interfaces
• Power: 200 W
• Supported Standard: IEEE 802.3 af/at

Hard Disk

• ESATA: 1 eSATA interface
• SATA: 4 SATA interfaces
• Capacity: Up to 10 TB capacity for each HDD

External Interface

• Serial InterfaceRS 485 (half duplex), RS 232, Keyboard
• USB Interface: Front panel: 2 — USB 2.0; Rear panel: 1 — USB 3.0
• Alarm In/Out: 16/8

General

• Working Temperature: -10 C to 55 C (14 F to 131 F)
• Dimensions (W — D — H): 445 — 400 —71 mm ( 17.5" — 15.7" — 2.8")
• Weight (Without Hard Disk): 5 kg (11 lb)
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Working Humidity: 10 to 90 %
• Total Power: 350 W
• Consumption (Without HDD And PoE): 30 W
• Chassis: 19 inch rack mounted 1.5U chassis

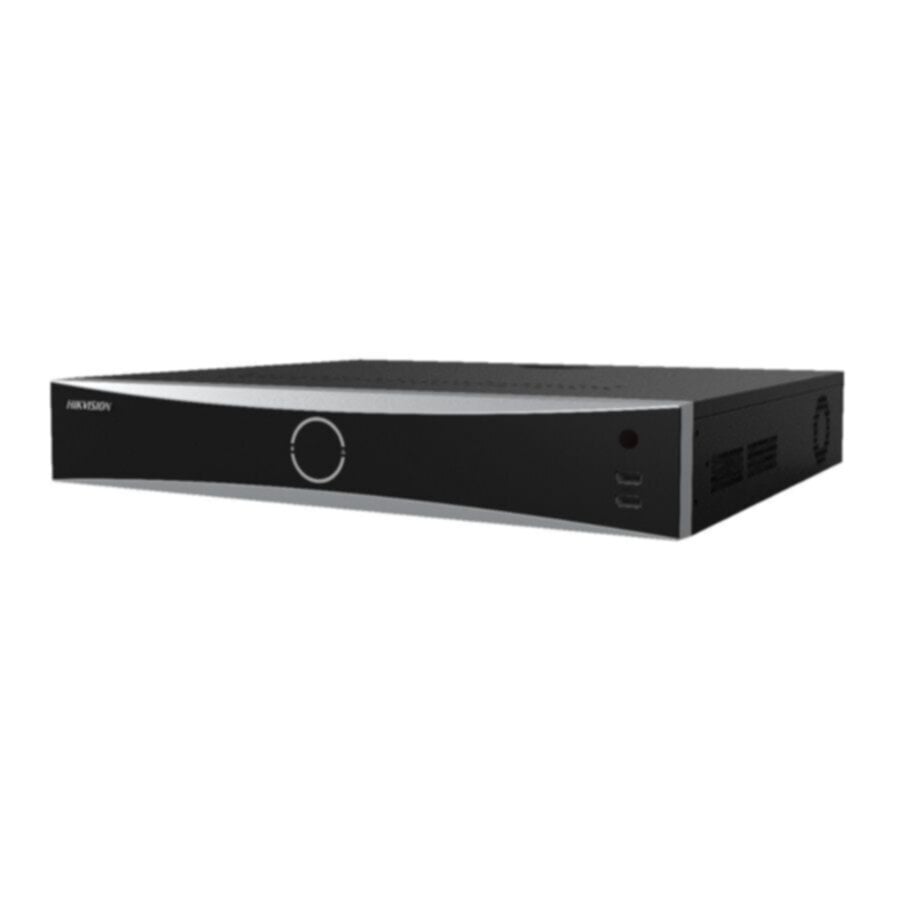

16 ch 1.5U 16 PoE 4K DeepinMind NVR

• Supports both facial recognition and false alarm reduction based on deep learning algorithm

• Up to 8 channel facial recognition

• 32 libraries, up to 100,000 face pictures

• Up to 16 channel video analysis for human and vehicle recognition to reduce false alarms

• Supports multiple VCA (Video Content Analytics) events

• Up to 16 channel IP cameras can be connected

• Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats

• Up to 12 MP high definition live view, storage and playback

• Up to 320 Mbps high incoming bandwidth ensures IP cameras can be connected

• 2 HDMI (different source) and 1 VGA interfaces

• 16 independent PoE network interfaces

• 4 HDD can be used for continuous video recording

• Compatible with third party network cameras

• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera

• Advanced streaming technology enables smooth live view in poor network conditions
