Supported voltages

• 100 V (50 Hz/60 Hz)
• Width: 380 mm
• Height: 647 mm
• Depth: 398 mm
• Weight: 23.1 kg
• Dispersion: 90° x 60° (rotatable)
• Maximum Sound Pressure: 135 dB
• Cross Over Frequency: 2 kHz

Inputs

• 2 XLR/TRS Combo (balanced)
• 2 RCA (unbalanced)

Outputs

• 2 Through output XLR (balanced)
• 1x Mixed output XLR (balanced)

Amplifier Output

• Class D
• 2400W peak / 1200W cont. (LF800W / HF400W)
• Impedance: 10kΩ

Driver

• 12-inch ferrite LF cone driver
• 1.75 inch titanium diaphragm neodymium compression driver

Finish

• Black semi-matt textured
• Impact-resistant
• Handle: 2 (on both sides)
• Pole socket: 35 mm socket (0°/7° multi-angle)
• Rigging point: 12x M10
• Enclosure: 15 mm birch plywood

Amplifier Protection

• Thermal limiting
• Over-temperature muting
• Output overcurrent

Driver Protection

• DC offset removal
• High frequency stationary loud signals
• Input voltage limiter (Peak/RMS)

Power unit Protection

• Primary AC mains overcurrent protection
• Primary AC mains overvoltage protection

Description

The XPRS Series active PA speakers are compact and portable, yet high-powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensure these mobile speakers are reliable and energy-efficient, making them suitable for all music genres and environments.

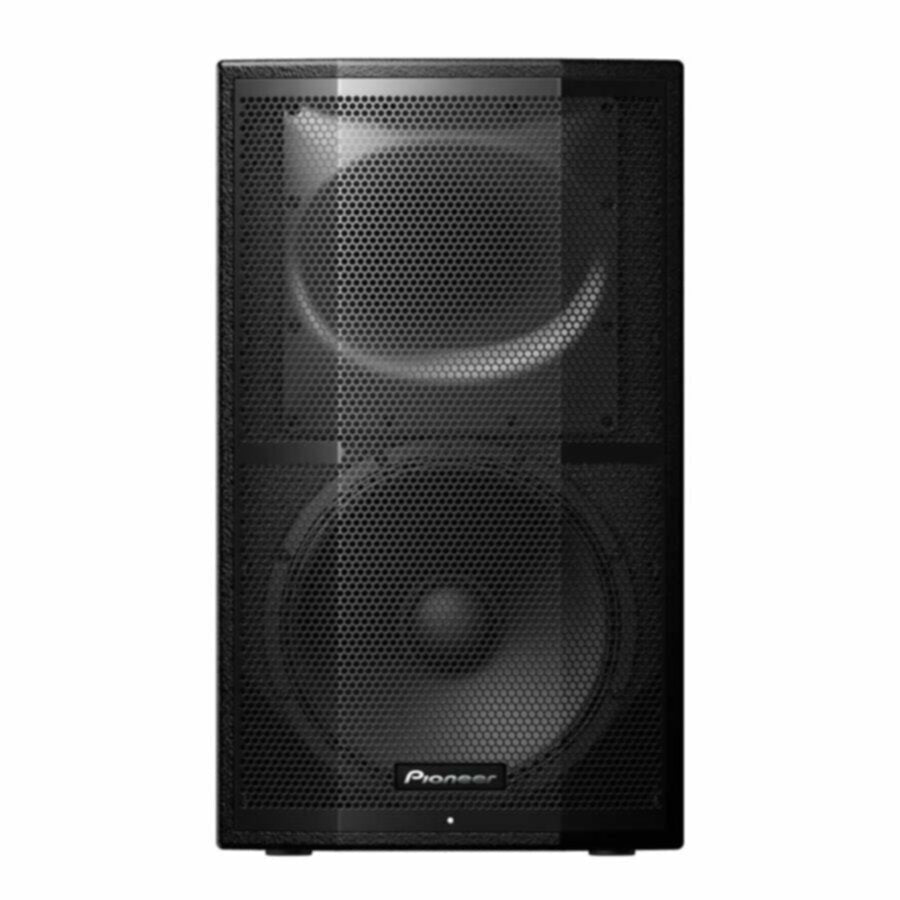

The XPRS12^* compact 12-inch speaker fills the room with a dynamic, natural sound thanks to their plywood enclosures and high-performance drivers.

Natural, Full-Range Sound

The 15-mm birch hardwood cabinet, 12-inch ferrite LF driver, and 1.75-inch titanium diaphragm compression driver produce a natural, full-range sound with low distortion, even at high volumes.

Powersoft Class D Amps

Powersoft’s Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments.

A fast Acoustic Tube

Pioneer Pro Audio’s AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs only the standing waves, increasing the low-to-mid frequency response.

4 EQ Modes

Adapt to a variety of genres and environments using the rotary selector switch on the back of the speaker to give you instant access to 4 EQ modes: Flat, Bass +, Speech and Wedge.

Advanced Protection

The XPRS speaker is packed with features to protect the drivers, amp, and power supply into Amplifier module – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system.

Flexible Connectivity

2 balanced XLR/TRS combo sockets and an unbalanced RCA connection mean you can connect at the same time a Mic and other devices, such as line-level mixers or portable audio players. 2 balanced XLR through outputs let you connect easily to other speakers and subs.

Rotatable Horn

Adjust to any space with horns that can rotate 90 degrees and give a dispersion of 90 x 60 degrees, giving you the flexibility to mount the speaker vertically and horizontally.

Choose your set-up

Place the wedge-shaped speaker as a foldback monitor on stage, use the rigging points to mount it to the ceiling or wall, or set the pole mount socket straight or tilted to 7 degrees to direct the sound exactly where you want it.

Designed for the road

The durable, birch plywood enclosure keeps your PA speaker safe, while carefully placed handles take the hard work out of transit and set-up.
