Supported voltages

_x000D_

_x000D_
• 100 V (50 Hz/60 Hz)
_x000D_
• Width: 380 mm
_x000D_
• Height: 647 mm
_x000D_
• Depth: 398 mm
_x000D_
• Weight: 23.1 kg
_x000D_
• Dispersion: 90 x 60 (rotatable)
_x000D_
• Maximum Sound Pressure: 135 dB
_x000D_
• Cross Over Frequency: 2 kHz
_x000D_

_x000D_

Inputs

_x000D_

_x000D_
• 2 XLR/TRS Combo (balanced)
_x000D_
• 2 RCA (unbalanced)
_x000D_

_x000D_

Outputs

_x000D_

_x000D_
• 2 Through output XLR (balanced)
_x000D_
• 1x Mixed output XLR (balanced)
_x000D_

_x000D_

Amplifier Output

_x000D_

_x000D_
• Class D
_x000D_
• 2400W peak / 1200W cont. (LF800W / HF400W)
_x000D_
• Impedance: 10k
_x000D_

_x000D_

Driver

_x000D_

_x000D_
• 12 inch ferrite LF cone driver
_x000D_
• 1.75 inch titanium diaphragm neodymium compression driver
_x000D_

_x000D_

Finish

_x000D_

_x000D_
• Black semi matt textured
_x000D_
• Impact resistant
_x000D_
• Handle: 2 (on both sides)
_x000D_
• Pole socket: 35 mm socket (0 /7 multi angle)
_x000D_
• Rigging point: 12x M10
_x000D_
• Enclosure: 15 mm birch plywood
_x000D_

_x000D_

Amplifier Protection

_x000D_

_x000D_
• Thermal limiting
_x000D_
• Over temperature muting
_x000D_
• Output overcurrent
_x000D_

_x000D_

Driver Protection

_x000D_

_x000D_
• DC offset removal
_x000D_
• High frequency stationary loud signals
_x000D_
• Input voltage limiter (Peak/RMS)
_x000D_

_x000D_

Power unit Protection

_x000D_

_x000D_
• Primary AC mains overcurrent protection
_x000D_
• Primary AC mains overvoltage protection
_x000D_

Description

_x000D_

The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensure these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.

_x000D_

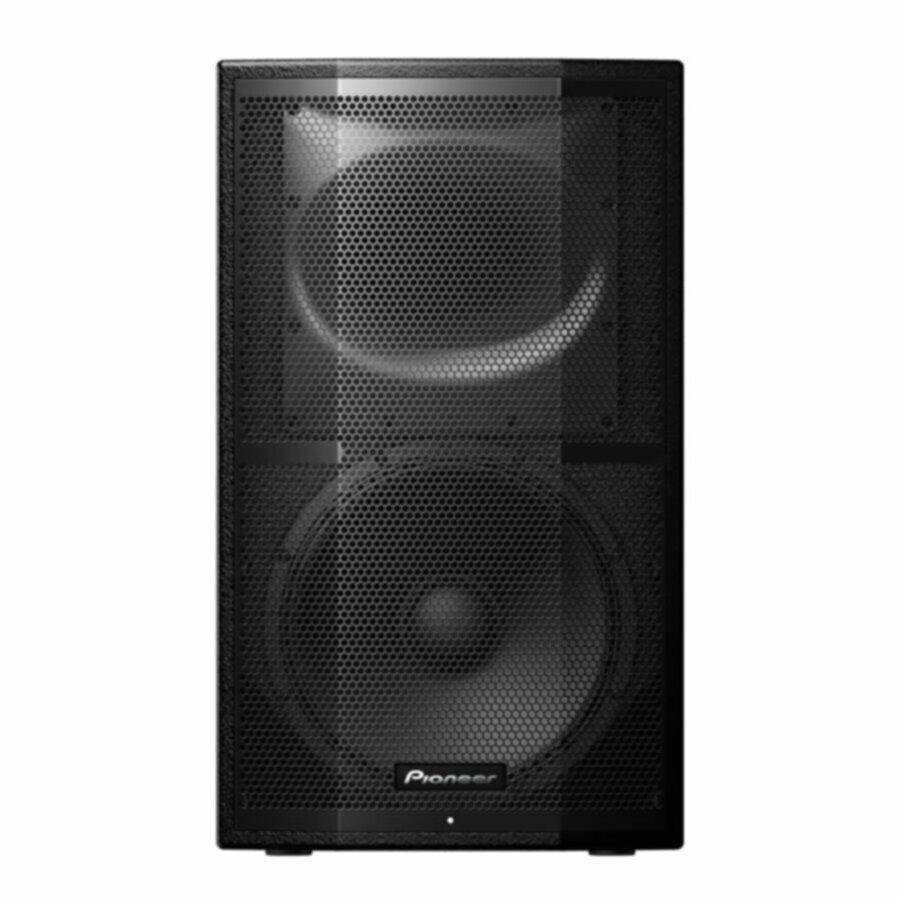

The XPRS12^* compact 12 inch speaker fills the room with a dynamic, natural sound thanks to their plywood enclosures and high performance drivers.

_x000D_

Natural, Full Range Sound

_x000D_

The 15 mm birch hardwood cabinet, 12 inch ferrite LF driver, and 1.75 inch titanium diaphragm compression driver produce a natural, full range sound with low distortion, even at high volumes.

_x000D_

Powersoft Class D Amps

_x000D_

Powersoft s Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments.

_x000D_

A fast Acoustic Tube

_x000D_

Pioneer Pro Audio s AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs only the standing waves, increasing the low to-mid frequency response.

_x000D_

4 EQ Modes

_x000D_

Adapt to a variety of genres and environments using the rotary selector switch on the back of the speaker to give you instant access to 4 EQ modes: Flat, Bass +, Speech and Wedge.

_x000D_

Advanced Protection

_x000D_

The XPRS speaker is packed with features to protect the drivers, amp, and power supply into Amplifier module – giving you peace of mind, consistent high quality sound, and extending the life of your sound system.

_x000D_

Flexible Connectivity

_x000D_

2 balanced XLR/TRS combo sockets and an unbalanced RCA connection mean you can connect at the same time a Mic and other devices, such as line level mixers or portable audio players. 2 balanced XLR through outputs let you connect easily to other speakers and subs.

_x000D_

Rotatable Horn

_x000D_

Adjust to any space with horns that can rotate 90 degrees and give a dispersion of 90 x 60 degrees, giving you the flexibility to mount the speaker vertically and horizontally.

_x000D_

Choose your set up

_x000D_

Place the wedge shaped speaker as a foldback monitor on stage, use the rigging points to mount it to the ceiling or wall, or set the pole mount socket straight or tilted to 7 degrees to direct the sound exactly where you want it.

_x000D_

Designed for the road

_x000D_

The durable, birch plywood enclosure keeps your PA speaker safe, while carefully placed handles take the hard work out of transit and set up.
