Model

SEV-80X

P
U
M
P

Connection Dia

80 mm (3")

Connection Thread

Outer Pipe Thread BSP or NPT

Total Head

27 m (88 ft)

Delivery Volume

1050 L/min (277 USG/min)

Max. Suction Lift

8 m (26ft)

E
N
G
I
N
E

Type

Forced Air-cooled 4-stroke Gasoline Engine

Model

Koshin K180

Displacement

179 cc

Rated Output

3.1 kW (4.2 PS) / 3600 rpm

Max. Output

3.5 kW (4.8 PS) / 3600 rpm

Fuel

Automotive Unleaded Gasoline

Fuel Tank Capacity

3.6 L (0.95 USG)

Continuous Operating Time

 Approx. 2.4 hrs

Starting Method

Recoil Starter

Standard Accessories

1 Strainer, 2 Hose Couplings, 3 Hose Bands

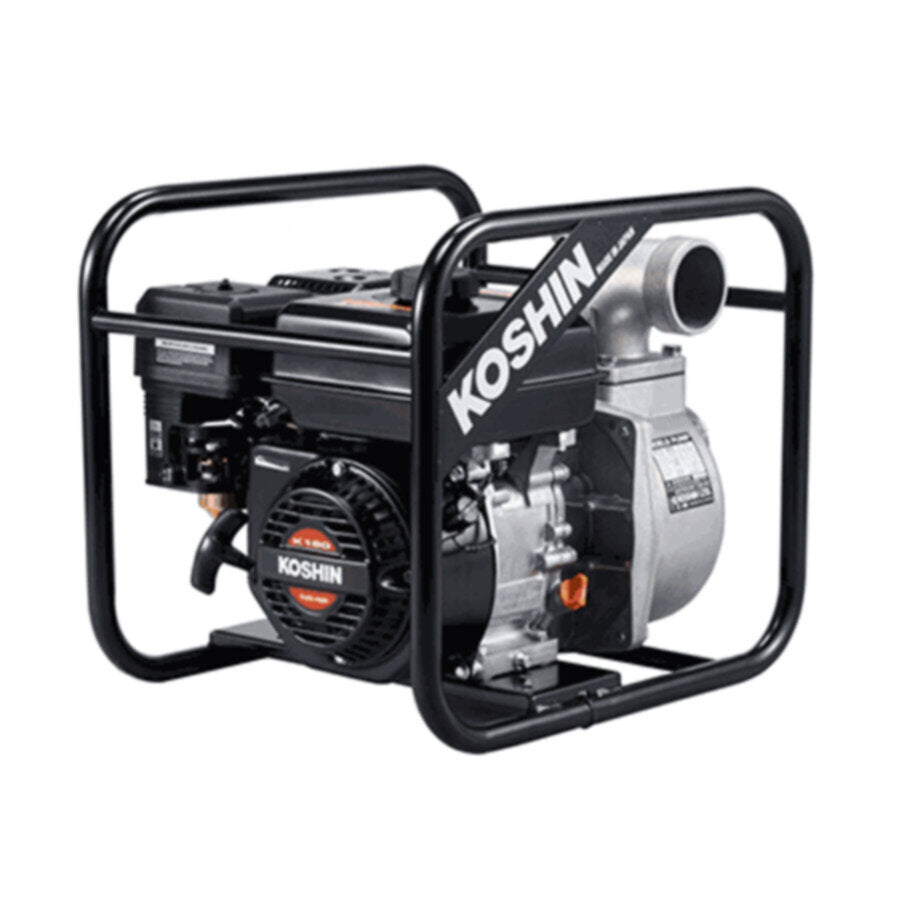

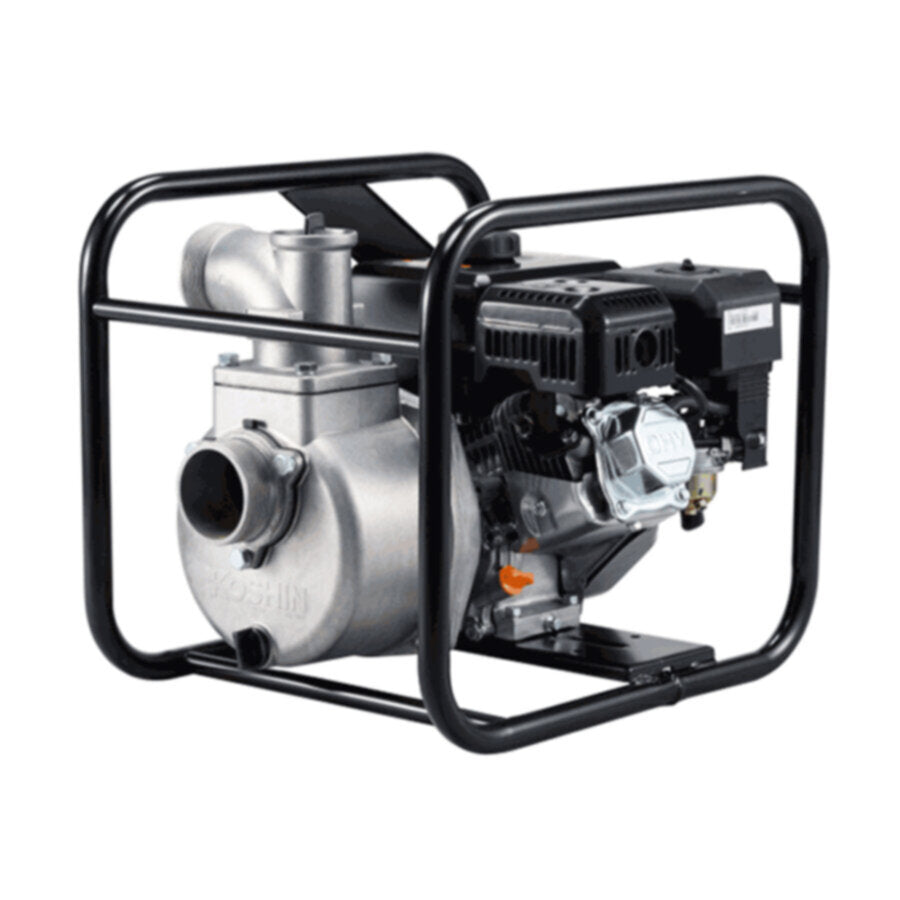

The SEV-80X is a high quality Japanese self-priming 3" pump from Koshin Ltd. for clear and dirty water with solid particles up to 3mm. This pump is powered by specially Koshin developed K180 petrol engine. The delivery volume of this pump is max. 1050 L/min, or a total head up to 25m. The product has a sturdy rollover pipe frame, 3" inlet and outlet, die-cast aluminium housing, rugged four-stroke engine, low oil alert, 3.6-liter fuel tank, engine tool, a filter, 2 hose couplings and three hose bands.

â—† KOSHIN Engine Competitive Price & Guaranteed Quality

â—† Low fuel consumption. The Koshin engine achieves the lowest fuel consumption.

â—† Low Vibration

â—† Comfortable in use after reducing engine vibration.

â—† Guaranteed performance

â—† Koshin guarantees 8 m suction lift and specifications.
