• Weight: 1.3 Kg
• Max. Drilling Capacity (Wood): 40 Mm
• Max. Drilling Capacity (Metal): 13 Mm
• Battery Capacity: 5 Ah
• Max. Drilling Capacity (Masonry): 13 Mm
• Max Torque (Hard): 70 Nm
• No Load Speed (Drilling/ Driving Mode): 0 550/2000 Rpm
• Beats Per Minute: 0 9350/34000 Bpm
• No Load Speed (Hammer Mode): 0 550/2000 Rpm
• Battery Chemistry: Li Ion
• Power Output: 420 W
• Max Torque (Soft): 27 Nm
• Chuck Capacity: 1.5 13 Mm
• No. Of Speeds: 2
• Weight (incl. Battery): 1.9 Mm
• Length: 173 Mm
• Height: 203 Mm
• Depth: 67 Mm
• Sound Pressure: 89 Db(A)
• Sound Pressure Uncertainty: 3 Db(A)
• Sound Power: 100 Db(A)
• Sound Power Uncertainty: 3 Db(A)
• Hand/Arm Vibration Drilling Into Metal: <2.5 M/S
• Uncertainty K 1 (Vibration): 1.5 M/S
• Hand/Arm Vibration Hammer Drilling Into Concrete: 11.5 M/S
• Uncertainty K 2 (Vibration): 1.6 M/S
• Hand/Arm Vibration Screw Driving Without Impact: <2.5 M/S
• Uncertainty K 3 (Vibration): 1.5 M/S

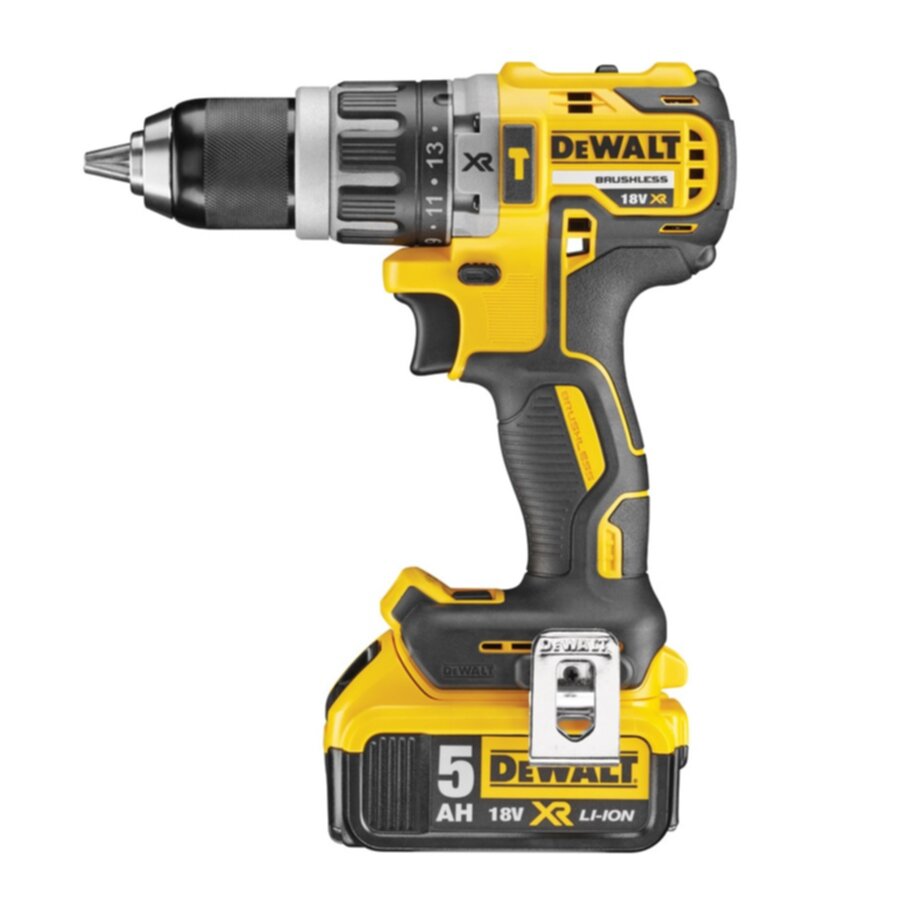

At only 173mm in length but delivering up to 70Nm in torque, the DCD796 is a compact hammer drill driver designed for heavy duty use in confined spaces. With adjustable speed and torque control, it" s ideal for countless professional tradesmen including plumbers, HVAC installers, carpenters, and general contractors.

COMPACT POWER

The compact DCD796 can easily undertake heavy duty tasks. Delivering 70Nm of torque it can drill at a capacity of 40mm in wood, 13mm in metal, and masonry. Its power to size and weight ratio makes it perfect for use in confined spaces.

TOTAL CONTROL

The DCD796 has a 2 speed all metal transmission and a 15 position adjustable torque control for controlled drilling into a variety of materials. With both a drill driver mode and hammer mode, users have total control over a wide range of applications.

• 18V XR Li Ion compact hammer drill driver featuring NEW 5.0Ah XR Li Ion battery technology

• Brushless Motor Technology for excellent efficiency

• Ultra compact; lightweight design allows use in confined spaces

• Two speed all metal transmission for increased runtime and longer tool life

• Drill Driver and Hammer feature for multiply applications

• 15 position adjustable torque control for consistent screw driving into a variety of materials

• Intelligent trigger design allows for total control of the application

• Foot LED with delay feature for improved visibility and flashlight functionality

• Improved ergonomic design with rubber grip over mold improving users comfort

• Li Ion battery packs allow for superior insertion and removal with state of charge indicator

• Steel belt hook and magnetic bit holder ensures strong storage solutions

• Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster

• Multi voltage charger for use with 18V, 14.4V, and 10.8V XR Li Ion battery packs
