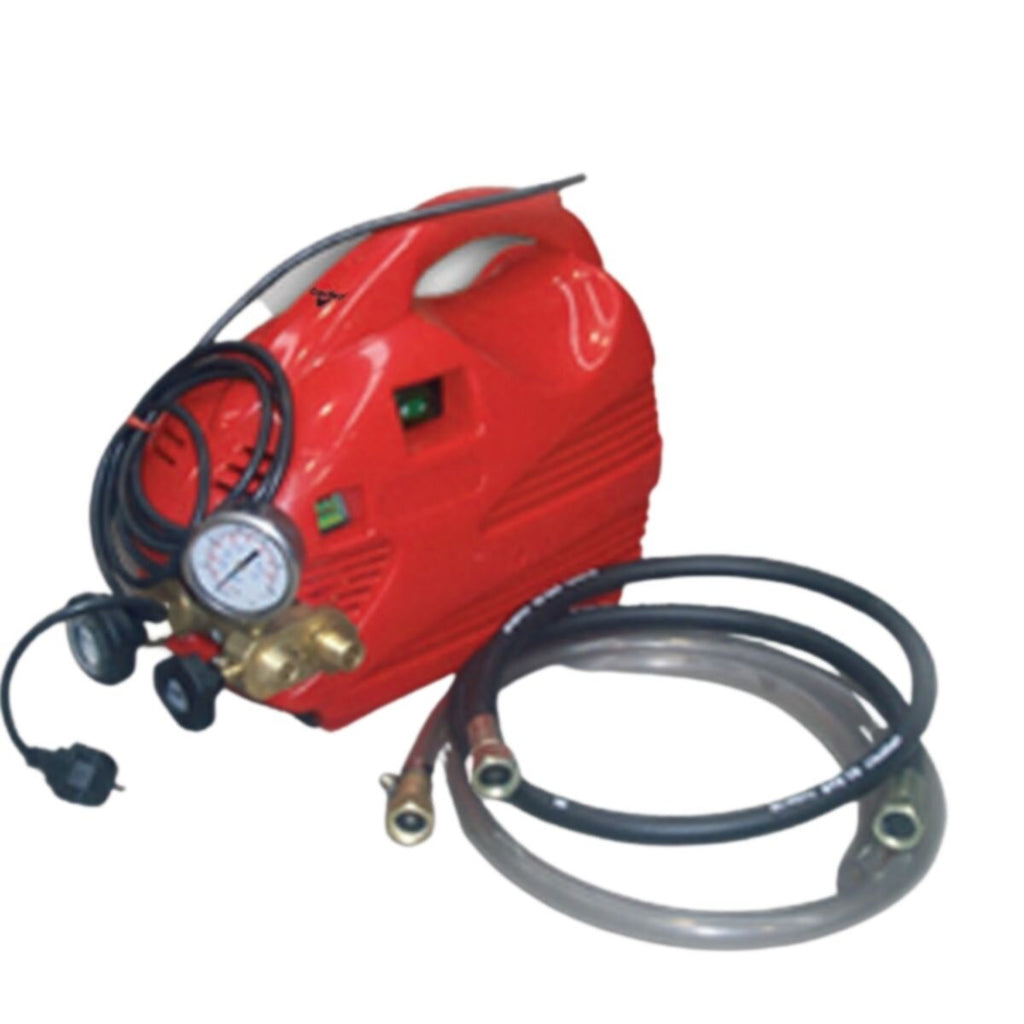

Robust, compact, light. Weighs only 12 kg. Easy to carry. Wear reduced high power piston pump. Pressure gauge, damped by filling with glycerine, p _x001F_ 6 MPa/ 60 bar/870 psi. Highpressure hose with fabric ply prevents measurement errors.

Suction hose with suction filter. Non-return valve in the suction hose prevents the suction hose from running empty in standstill times; therefore shorter suction times. Suction hose and high pressure hose with ½"-connection..

Connecting piece with pressure gauge, p _x001F_ 6 MPa/60 bar/870 psi, and shut off valve for pressure and tightness testing also after removal of the high pressure pump,e.g. theft protection or for use at several testing points, as accessory. Fine scale pressure gauge, p _x001F_ 1.6 MPa/ 16 bar/232 psi, for reading a pressure change of 0.01 MPa/0,1 bar/1.45 psi for tightness testing according to DIN 1988, as accessory..

Universal use

In sanitary, heating, solar and sprinkler installation, for compressed air, steam and cooling systems, oil installations, in boiler and pressurised vessel construction.

Adjustable pressure limiting

Pressure limiting in 6 stages, 1 – 6 MPa/10 – 60 bar/145 – 870 psi, adjustable to the necessary pressure in the pipe system/tank.

High power piston pump

Selfsucking high power piston pump running in a sealed oil bath with wear reduced pressure piston in stainless steel. Proven, powerful capacitor motor, 1300 W, very powerful and fast. High pumping capacity of 6.5 l/min. Pressure and tightness testing up to 6 MPa/60 bar/870 psi.
