Face Detection And Analytics

• Face Picture Library: 32 librariesï¼›100, 000 pictures
• Face Detection And Analytics: 8-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
• Face Picture Comparison: 16-ch face pictures comparison alarm, Alarm linkage actions: recording, audio
• Alarm: warning, notify surveillance center, send email
• Face Picture Search: Search by picture is supported

Human/Vehicle Analysis

• False Alarm Filtering: Up to 16-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

Video And Audio

• IP Video Input: 16-chï¼›Up to 12 MP resolution
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA Simultaneous Output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Live View / Playback Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 16-ch
• Capability: 16-ch @ 1080p

Network

• Remote Connection: 128
• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPâ„¢, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
• Power: â‰¤ 200 W
• Supported Standard: IEEE 802.3 af/at

Hard Disk

• ESATA: 1 eSATA interface
• SATA: 4 SATA interfaces
• Capacity: Up to 10 TB capacity for each HDD

External Interface

• Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out: 16/8

General

• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Dimensions (W × D × H): 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
• Weight (Without Hard Disk): â‰¤ 5 kg (11 lb)
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Working Humidity: 10 to 90 %
• Total Power: â‰¤ 350 W
• Consumption (Without HDD And PoE): â‰¤ 30 W
• Chassis: 19-inch rack-mounted 1.5U chassis

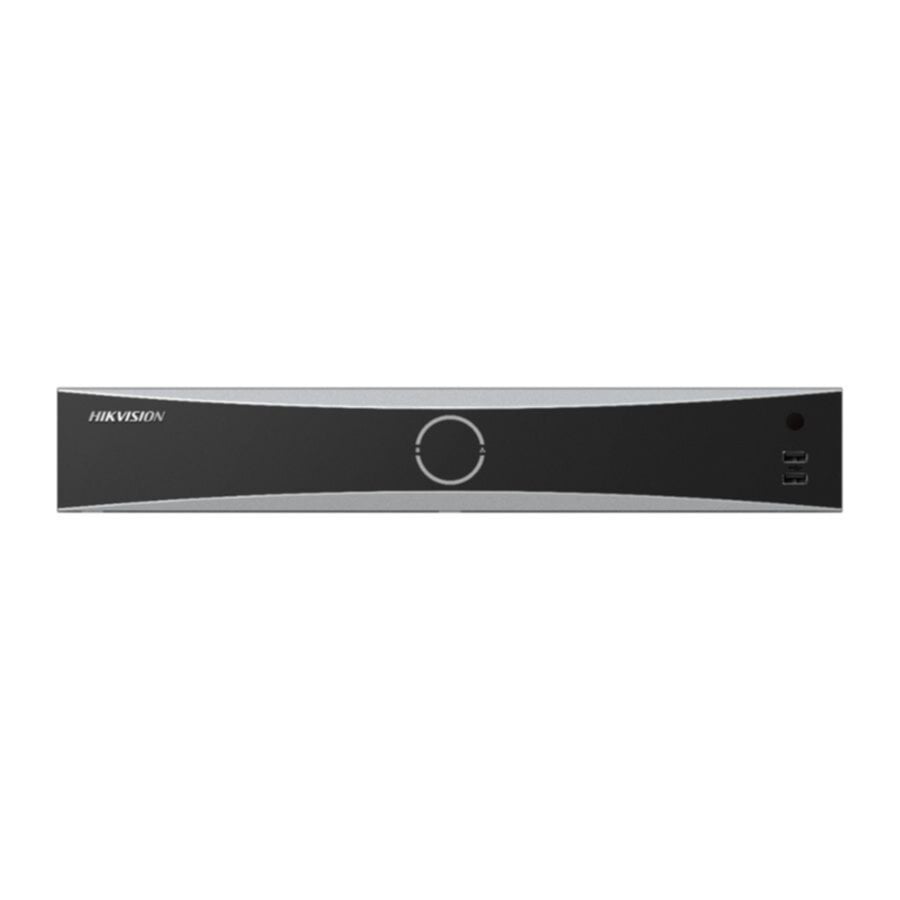

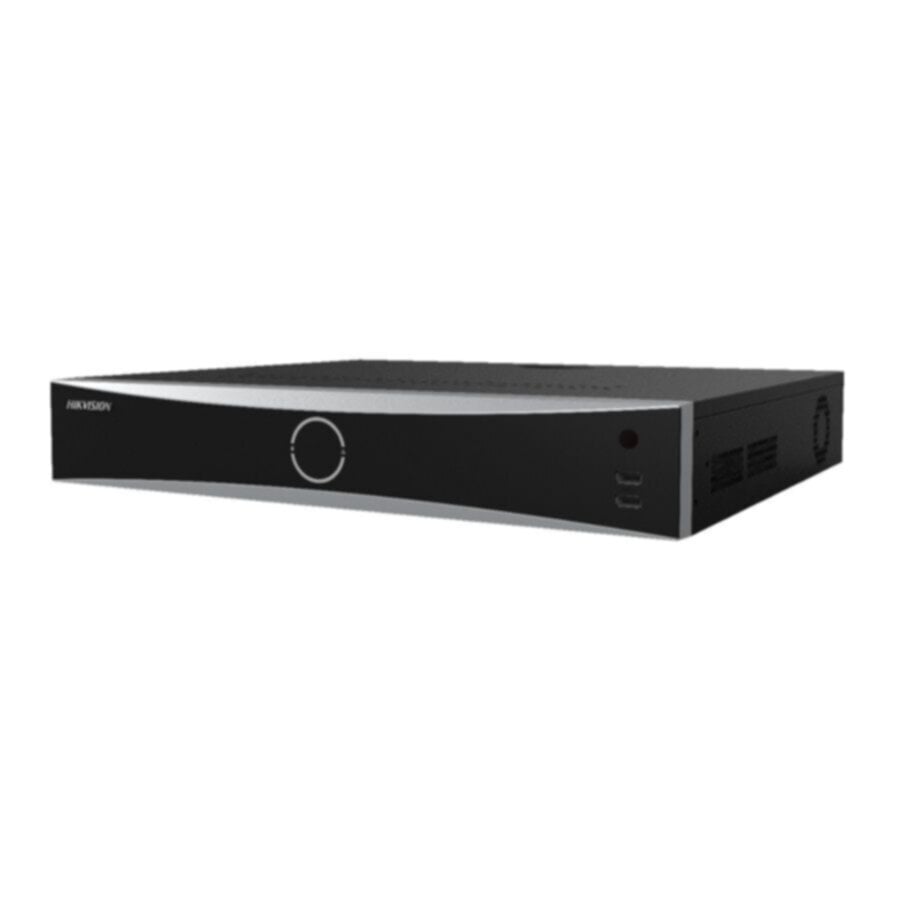

16-ch 1.5U 16 PoE 4K DeepinMind NVR

â—† Supports both facial recognition and false alarm reduction based on deep learning algorithm

â—† Up to 8 channel facial recognition

â—† 32 libraries, up to 100,000 face pictures

â—† Up to 16 channel video analysis for human and vehicle recognition to reduce false alarms

â—† Supports multiple VCA (Video Content Analytics) events

â—† Up to 16 channel IP cameras can be connected

â—† Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats

â—† Up to 12 MP high-definition live view, storage and playback

â—† Up to 320 Mbps high incoming bandwidth ensures IP cameras can be connected

â—† 2 HDMI (different source) and 1 VGA interfaces

â—† 16 independent PoE network interfaces

â—† 4 HDD can be used for continuous video recording

â—† Compatible with third-party network cameras

â—† Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera

â—† Advanced streaming technology enables smooth live view in poor network conditions
