Hardware&Dimension:

â—† Dimension: 116.5mm x 61mm x 16mm

â—† Upstream: USB-C Male

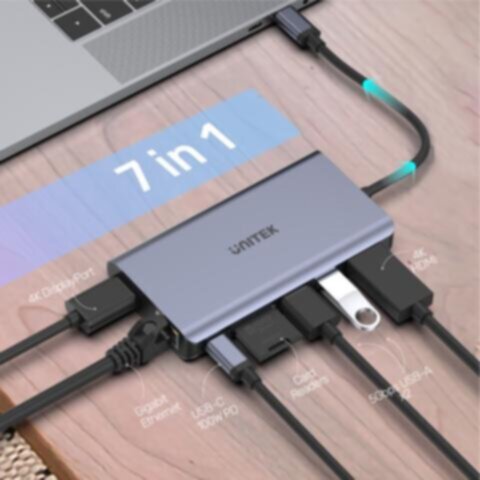

â—† Downstream:DisplayPort (Up to 4K@30Hz) x1 HDMI (Up to 4K@30Hz) x1 USB-C (PD 100W for charging) x1 USB-A (SuperSpeed@5Gbps) x2

â—† Gigabit Ethernet (RJ45) x1

â—† Card Reader (24mm size) x1

â—† Color: Space Grey

â—† Material: Aluminium Housing Package Contents: 1 x uHUB S7+ 7-Port Multi-function With DisplayPort & USB PD 100W

This USB-C DisplayPort hub combines three USB 3.1 Gen1 5Gbps ports, dual display outputs, a Gigabit Ethernet RJ45, dual card readers, plus the forceful Power Delivery 100W charging via the USB-C. HDMI supports up to 4K 30Hz Ultra HD, while MST allows streaming the independent screens to both DisplayPort and HDMI at a lower resolution.

2 USB-A ports for easy expansion. With USB3.1 Gen1 specification, the data transfer rate up to 5Gbps. Backward compatible with USB2.0/1.1. With the USB-C Power Delivery (USB PD) port, supporting maximum 100W/20V5A charging to your upstream computer. USB PD power actual output depends on your power adapter. Support both DisplayPort and HDMI up to 4K@30Hz ultra HD video output.

Support MST, streaming to extra 2 independent displays via DisplayPort and HDMI simultaneously, while the max. resolution of HDMI will lower to 1080P@60Hz. macOS does not support MST.

With the card reader supporting 24mm size, with SDHC / SDXC specification up to 2TB capacity. Gigabit Ethernet supports IPv4/IPv6, COE, Wake-on-LAN, full and half-duplex, automatic flip and flows control. Fully support IEEE 802.3 standard, compatible with 10/100/1000Mbps data transfer.

USB-C connector allows you to connect with a computer-equipped Thunderbolt 3 port or USB-C port that supports DisplayPort Alt Mode (DP Alt Mode). With aluminum housing, durable and elegant. Bus-powered, no power adapter needed. Plug and play, no driver required.

â—† 4K@30Hz UHD HDMI & DisplayPort

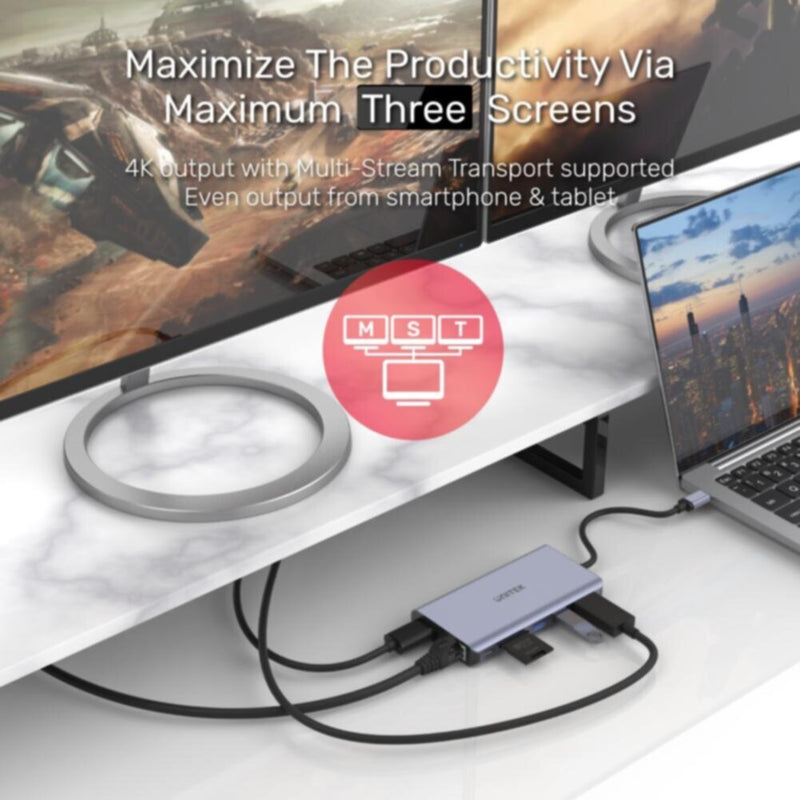

â—† Multi-Stream Transport (MST)

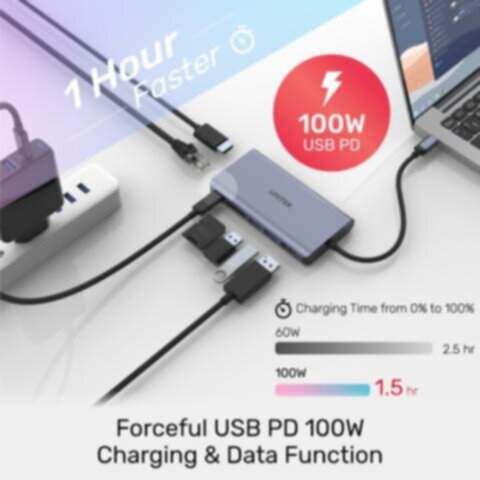

â—† USB-C Power Delivery 100W charging

â—† 5Gbps SuperSpeed USBx2 & card readers

â—† Gigabit Ethernet
