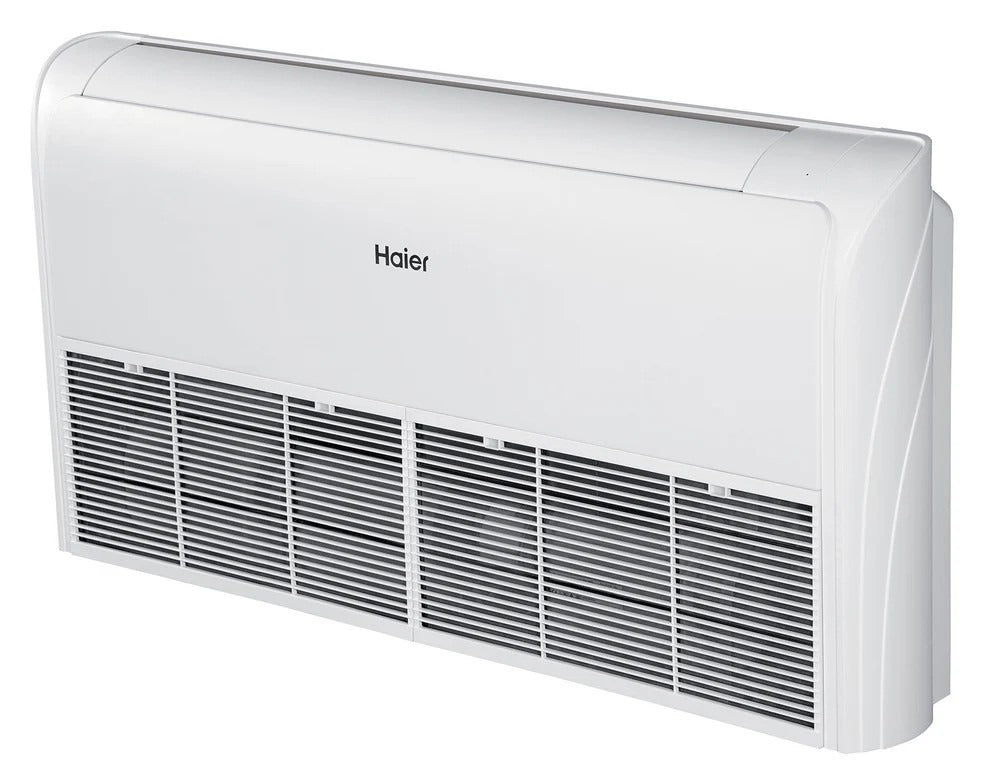

HAIER | 2 Ton Ceiling Floor Air Conditioner White | AC71S2SG1FA

FEATURES:

✅ MODEL INDOOR UNIT: AC71S2SG1FA

✅OUTDOOR UNIT: 1U71S1PJ1SA

✅ ELECTRICAL PARAMETERS

✅ POWER SUPPLY: PH/V/HZ    1/220/50

✅ NORMAL PERFORMANCE DATA

✅ CAPACITY RATED    KW: 7.1  ( 3.2- 8)

✅ BTU/H/1000: 24  (10.9-27.3)

✅ INPUT W: 2300

✅ RUNNING CURRENT COOLING    A: 10.34

✅ EER: 3.08

✅ SEER: 18.99

✅ INDOOR UNIT

✅ PERFORMANCE

✅ INDOOR AIRFLOW(SH/H/M/L) m3 /h: 1250/1128/930/840

✅ SOUND PRESSURE(SH/H/M/L) dB(A): 43/40/38/35

✅ INSTALLATION

✅ EXTERNAL DIMENSION(W/D/H)mm: 1325/230/680

✅ NET/GROSS WEIGHT Kg: 33.5/41.9

✅ CONTROLLER Standard: YL-HQS01

✅ OUTDOOR UNIT

✅ MAXIMUM AIR FLOW(H) m3 /h: 2500

✅ SOUND PRESSURE dB(A): 54

✅ INSTALLATION

✅ EXTERNAL DIMENSION(W/D/H)mm: 820/300/615

✅ NET /GROSS WEIGHT Kg: 38/42

✅ COMPRESSOR TYPE: ROTARY

✅ REFRIGERANT TYPE: R32

✅ REFRIGERANT LOAD IN FACTORY g: 1200

✅ REFRIGERANT CHARGE QTY    g/m: 45

✅ LIQUID SIDE mm: 9.52

✅ GAS SIDE mm: 15.88

✅ MAXIMUM PIPE LENGTH(B)    m: 20

✅ MAXIMUM DROP BETWEEN IU & OU m: 10

✅ MIN.LENGTH: 3
