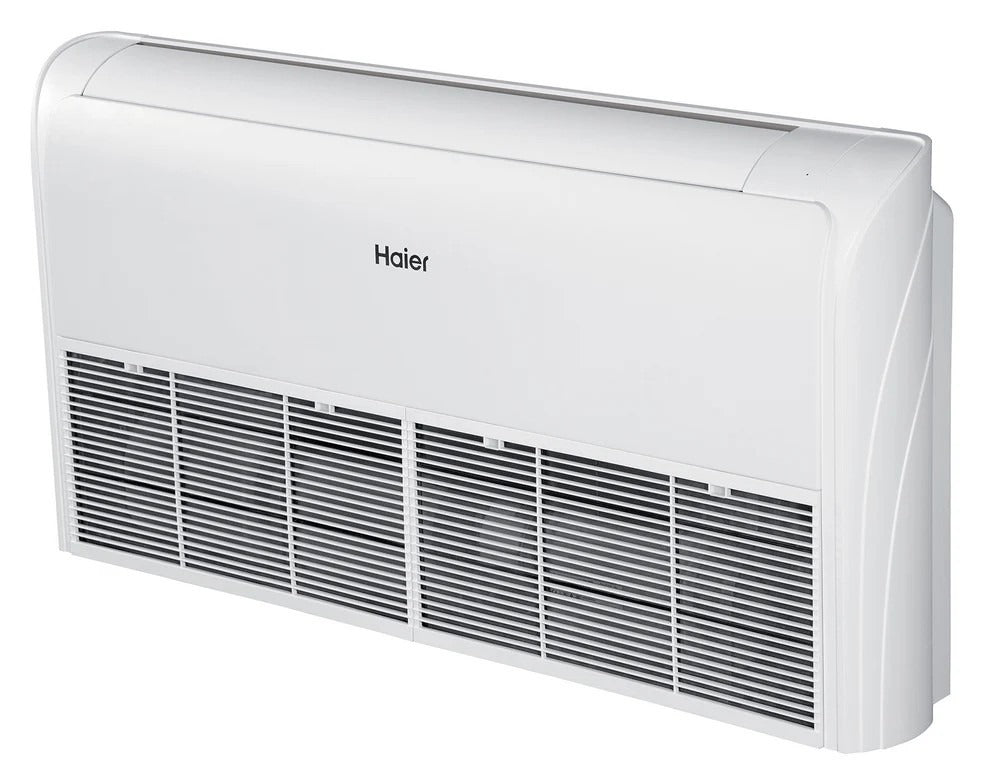

HAIER | 2.5 Ton Ceiling Floor Air Conditioner White | AC90S2SH1FA

FEATURES:

✅ MODEL INDOOR UNIT: AC90S2SH1FA

✅ OUTDOOR UNIT: 1U90S1PS2SA

✅ ELECTRICAL PARAMETERS

✅ POWER SUPPLY: PH/V/HZ    1/220/50

✅ NORMAL PERFORMANCE DATA

✅ CAPACITY RATED    KW: 8.6    (5 -10)

✅ BTU/H/1000: 29.3    (17.1- 34.1)

✅ INPUT W: 2500

✅ RUNNING CURRENT COOLING    A: 11.47

✅ EER: 3.44

✅ SEER: 21.49

✅ INDOOR UNIT

✅ PERFORMANCE

✅ INDOOR AIRFLOW(SH/H/M/L) m3 /h: 1400/1300/1180/1060

✅ SOUND PRESSURE(SH/H/M/L) dB(A): 45/43/40/37

✅ INSTALLATION

✅ EXTERNAL DIMENSION(W/D/H)mm: 1325/230/680

✅ NET/GROSS WEIGHT Kg: 33.5/41.9

✅ CONTROLLER Standard: YL-HQS01

✅ OUTDOOR UNIT

✅ MAXIMUM AIR FLOW(H) m3 /h: 3500

✅ SOUND PRESSURE dB(A): 55

✅ INSTALLATION

✅ EXTERNAL DIMENSION(W/D/H)mm: 920/372/765

✅ NET /GROSS WEIGHT Kg: 54/59

✅ COMPRESSOR TYPE: ROTARY

✅ REFRIGERANT TYPE: R32

✅ REFRIGERANT LOAD IN FACTORY g: 1650

✅ REFRIGERANT CHARGE QTY    g/m: 45

✅ LIQUID SIDE mm: 9.52

✅ GAS SIDE mm: 15.88

✅ MAXIMUM PIPE LENGTH(B)    m: 25

✅ MAXIMUM DROP BETWEEN IU & OU m: 10

✅ MIN.LENGTH: 3
