Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built in Auto Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site power data, plus enables a variety of UPS setup and configuration options. Super fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS 232 and slot for network management card option. HID compliant USB interface enables integration with built in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self test data and utility power conditions. PowerAlert monitoring software is available for free download. Switched output load banks enable scheduled and real time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push button momentary alarm cancel and silent mode configuration options. Programmable self test. Field replaceable, hot swappable battery modules.

Features

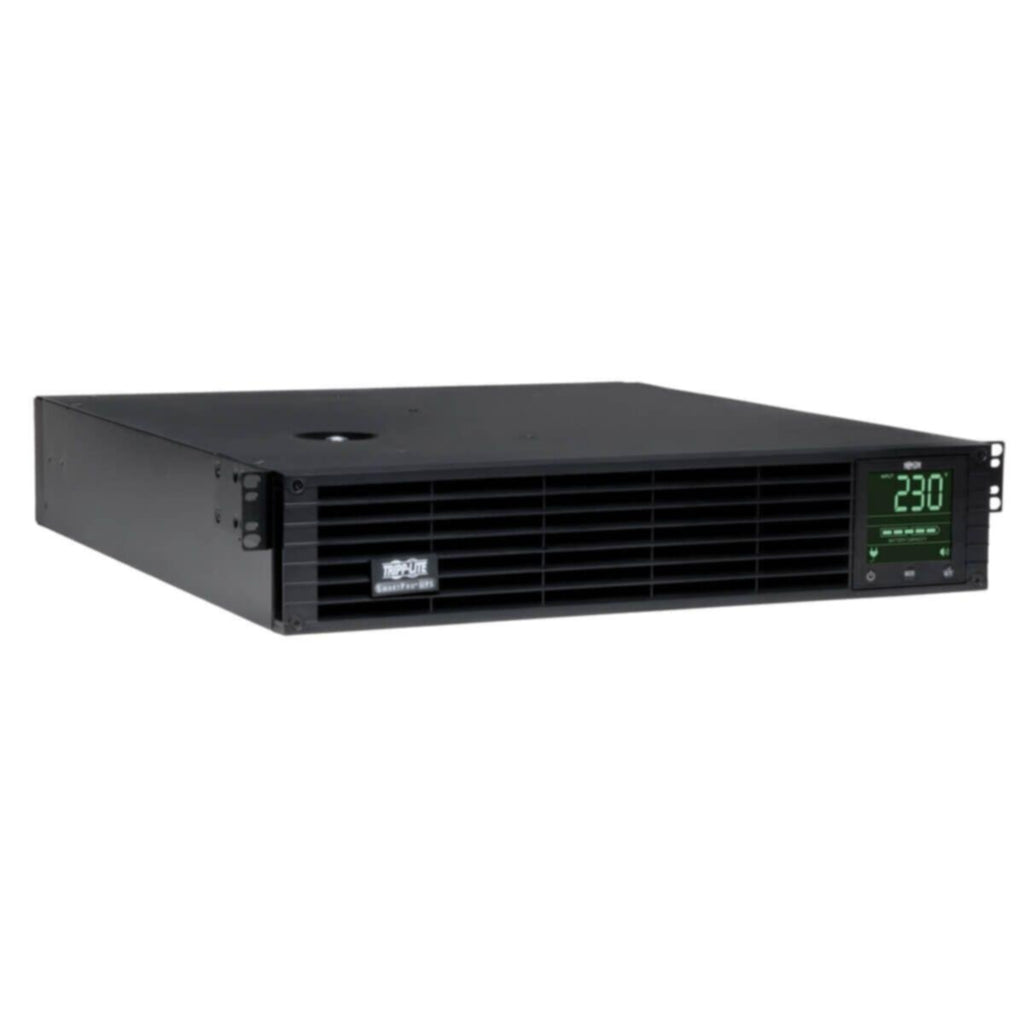

• Tripp Lite SMX3000XLRT2UA line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity and extended runtime options
• Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 158 to 278V
• C20 AC power inlet; 8 C13 and 1 C19 output receptacles, Two independently switchable output load banks
• Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
• High 98% efficiency rating in line power mode offers reduced power consumption and BTU emisssions
• Internal batteries offer 11.1 minutes at 50% load (1350W) and 3.9 minutes at 100% load (2700W)
• Extended runtime is available with optional external battery packs BP48V24 2U (limit 1), BP48V60RT 3U (multi pack compatible) and BP48V27 2US (multi pack compatible)
• External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
• Hot swappable, user replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
• Intelligent battery management system extends battery life
• Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5 bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
• LCD interface also supports a number of advanced user setup and operating preferences
• Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2 9USTAND enables tower placement
• Built in USB, RS 232 and slot for optional network management card options
• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
• HID compliant USB interface enables integration with built in power management and auto shutdown features of Windows and Mac OS X
• USB & Serial ports enable data saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from poweralert
• Built in Emergency Power Off (EPO) interface with cable

Package Includes

• UPS system
• USB, Serial & EPO cabling
• 4 post rackmount installation kit
• Set of 3 C13/C14 power cables
• Instruction manual

Specifications

OVERVIEW

• UPC Code: 037332181381
• UPS Type: Line Interactive

OUTPUT

• Output Volt Amp Capacity (VA): 3000
• Output kVA Capacity (kVA): 3.00
• Output Watt Capacity (Watts): 2700
• Output kW Capacity (kW): 2.70
• Power Factor : 0,9
• Nominal Voltage Details: 230v nominal inverter output voltage
• Frequency Compatibility: 50 / 60 Hz
• Frequency Compatibility Details: Automatic frequency selection
• Output Voltage Regulation (Line Mode): +6%, -15%
• Output Voltage Regulation (Battery Mode): +/-5%
• Included Output Power Cables: Set of 3 C13 to C14 power cables included
• Load Management Receptacles : Two switchable single outlet C13 load banks
• Output AC Waveform (AC Mode): Pure Sine wave
• Output AC Waveform (Battery Mode): Pure Sine wave
• Nominal Output Voltage(s) Supported: 220V; 230V; 240V
• Output Receptacles: (8) C13; (1) C19
• Individually Controllable Load Banks : Yes

INPUT

• Rated input current (Maximum Load): 14.1A
• Nominal Input Voltage(s) Supported: 230V AC
• UPS Input Connection Type: C20 inlet
• UPS Input Connection Description: IEC320 C20 input connection accepts a variety of user supplied detachable C19 output cordsets to match country or site specific power sources
• Input Circuit Breakers: 20A
• Input Phase: Single Phase

BATTERY

• Full Load Runtime (min.) : 3.9 min. (2700w)
• Half Load Runtime (min.) : 11.1 min. (1350w)
• Expandable Battery Runtime: Extended runtime supported via optional external battery packs
• External Battery Pack Compatibility : BP48V24 2U (limit 1); BP48V60RT 3U (multi pack compatible); BP48V27 2US (multi pack compatible)
• DC System Voltage (VDC): 48
• Battery Recharge Rate (Included Batteries): Less than 5 hours from 10 to 90% (typical, full load discharge)
• Internal UPS Replacement Battery Cartridge: RBC58 2U
• Battery Access: Front panel battery access door
• Battery Replacement Description: Hot swappable, replaceable batteries
• Expandable Runtime: Yes

VOLTAGE REGULATION

• Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278
• Overvoltage Correction : Input voltages between 244 and 278 are reduced by 12%
• Undervoltage Correction : Input voltages between 206 and 183 are boosted by 12%
• Severe Undervoltage Correction: Input voltages between 158 and 183 are boosted by 24%

USER INTERFACE, ALERTS & CONTROLS

• Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
• Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
• Alarm Cancel Operation: Power fail alarm can be temporarily silenced using alarm cancel switch; silent mode alarm configuration option available
• Audible Alarm: Audible alarm indicates UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions

SURGE / NOISE SUPPRESSION

• UPS AC Suppression Joule Rating: 350
• EMI / RFI AC Noise Suppression : Yes
• AC Suppression Response Time : Instantaneous

PHYSICAL

• Cooling Method: Fan
• Included Mounting Accessory Description: Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
• Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
• Installation Form Factors Supported with Optional Accessories: 2 post rackmount ( 2POSTRMKITWM ); 2 4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short depth ( 4POSTRAILKITWM ); Tower ( 2 9USTAND ); Wallmount ( 2POSTRMKITWM )
• Minimum Required Rack Depth with External Battery Pack (cm): 67
• Minimum Required Rack Depth with External Battery Pack (in.): 26.5
• Minimum Required Rack Depth without External Battery Pack (cm): 58
• Minimum Required Rack Depth without External Battery Pack (in.): 23
• Optional Mounting Accessory Notes: Optional 2 9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall mount and 2 post rackmount installation; 4POSTRAILKITWM enables installation in 4 post short depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4 post racks using front vertical rails only, without rear support
• Primary Form Factor: Rackmount
• Primary UPS Depth (mm): 495
• Primary UPS Height (mm): 89
• Primary UPS Width (mm): 445
• Rack Height: 2U
• Shipping Dimensions (hwd / cm): 22.86 x 60.32 x 52.07
• Shipping Weight (kg): 40.37
• UPS Housing Material: Steel
• UPS Power Module Dimensions (hwd, cm): 8.89 x 44.45 x 49.53
• UPS Power Module Weight (kg): 28.49

ENVIRONMENTAL

• Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
• Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
• Relative Humidity: 0 to 95%, non condensing
• AC Mode BTU / Hr. (Full Load) : 158
• Battery Mode BTU / Hr. (Full Load) : 1501
• AC Mode Efficiency Rating (100% Load): 98%
• Audible Noise: 45 dBA maximum, front side 1m

COMMUNICATIONS

• Network Management Cards: SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD
• Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
• PowerAlert Software: For local monitoring via the UPS s built in communication ports, download PowerAlert Local software at poweralert
• Communications Cable: USB, DB9 and EPO cabling included
• WatchDog Compatibility: Supports Watchdog application, OS and hard reboot restart options for remote applications
• Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

LINE / BATTERY TRANSFER

• Transfer Time : 6 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)
• Low Voltage Transfer to Battery Power (Setpoint): 158
• High Voltage Transfer to Battery Power (Setpoint): 278

SPECIAL FEATURES

• Cold Start (Startup in Battery Mode During a Power Failure): Cold start operation supported
• High Availability UPS Features: Hot swappable batteries
• Green Energy Saving Features: Greater than 95% efficiency GREEN UPS; Individually controllable load banks; Schedulable daily hours of economy mode operation

CERTIFICATIONS

• UPS Certifications: CE; ROHS (Restriction of Hazardous Substances)
• UPS Certification Details: IEC 62040 1, IEC 62040 2 Class A EMI, GOST

WARRANTY

• Product Warranty Period (Worldwide): 2 year limited warranty
