• Offers extended run UPS operation when used in conjunction with compatible 36V DC Tripp Lite UPS systems
• Includes heavy gauge cabling with high current DC connectors for simple installation
• Included mounting brackets support rackmount installation in 4 post racks using only 2 rack spaces (2U)
• UPDHDEARKIT option supports 2 point front rail rackmount installation without rear supports
• 2POSTRMKITWM option supports balanced 2 point center mounting in 2 post equipment racks
• 2POSTRMKITWM option also enables wallmount installation
• 2 9USTAND option enables upright tower placement

Package Includes

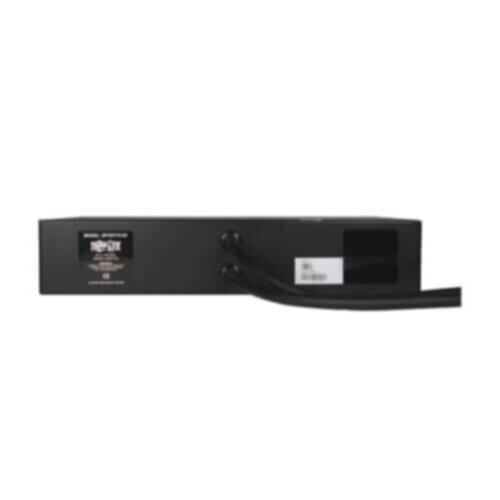

• BP36V15 2U external battery pack with attached DC cabling
• 4 post compatible mounting hardware
• Owner's manual

Specifications

INPUT

• Input Phase: Single Phase

BATTERY

• DC System Voltage (VDC): 36
• UPS Connection: Grey 2 point connector
• Typical Battery Lifespan: 4 6 years typical

PHYSICAL

• External Battery Pack Form Factor: Rack/Tower
• Included Mounting Accessory Description: Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
• Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
• Installation Form Factors Supported with Optional Accessories: 2 post rackmount (2POSTRMKITWM); 4 post rackmount short depth (4POSTRAILKITWM); Tower (2 9USTAND); Wallmount (2POSTRMKITWM)
• Material of Construction: Steel
• Minimum Required Rack Depth (cm): 50.16
• Optional Mounting Accessory Notes: Optional 2 9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall mount and 2 post rackmount installation; 4POSTRAILKITWM enables installation in 4 post short depth racks from 14.5 to 23.5 inches (368 to 597mm)
• Shipping Dimensions (hwd / cm): 22.61 x 51.31 x 59.44
• Shipping Weight (kg): 25.72
• Unit Dimensions (hwd / cm): 8,89 x 44,45 x 33,66
• Unit Weight (kg): 20.41

WARRANTY

• Product Warranty Period (International): 1 year limited warranty
