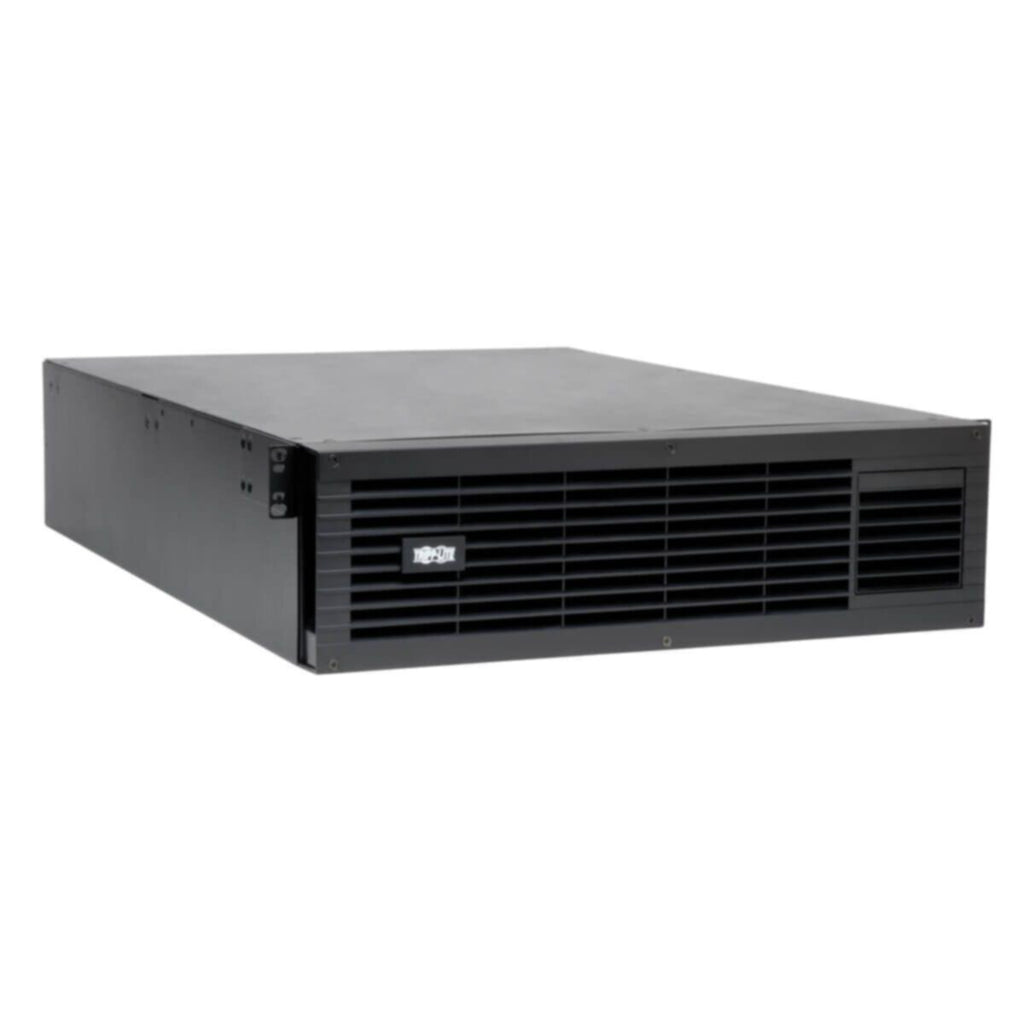

BP72V28RT 3U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 72V Tripp Lite rackmount and tower UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS. Included mounting accessories support 3U rackmount installation in 4 post racks. Options for 2 post center mounting and upright tower installation available. Compatible with these UPS Systems SU3000RTXL2U, SU3000RTXL3U, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U and other Tripp Lite UPS systems that specify the use of this battery pack.

• Offers extended run UPS operation when used in conjunction with compatible 72V DC Tripp Lite UPS systems
• Includes heavy gauge cabling with high current DC connectors for simple installation
• Daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS
• Included mounting brackets support rackmount installation in 4 post racks using only 3 rack spaces (3U)
• 2POSTRMKITHD option supports balanced 2 point center mounting in 2 post equipment racks
• 2 9USTAND option enables upright tower placement

Package Includes

• External battery pack with attached DC cabling
• 4 post compatible mounting hardware
• Owner's manual

Specifications

INPUT

• Input Phase: Single Phase

BATTERY

• Expandable Battery Runtime: Yes, DC connector accepts daisy chaining of multiple external battery packs for extended runtime operation
• DC System Voltage (VDC): 72
• UPS Connection: Black 3 point DC connector
• Typical Battery Lifespan: 4 6 years typical
• Expandable Runtime: Yes

PHYSICAL

• External Battery Pack Form Factor: Rack/Tower
• Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
• Installation Form Factors Supported with Optional Accessories: 2 post rackmount (2POSTRMKITHD); Tower (2 9USTAND)
• Material of Construction: Steel
• Minimum Required Rack Depth (cm): 90.17
• Shipping Dimensions (hwd / cm): 27.94 x 58.42 x 83.82
• Shipping Weight (kg): 83.91
• Unit Dimensions (hwd / cm): 13.33 x 44.45 x 74.9
• Unit Weight (kg): 67.13

WARRANTY

• Product Warranty Period (International): 1 year limited warranty
