This 200/208/220/230/240V 50/60 Hz UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 1980W capacity, high 0.9 power factor, 936 joules of surge suppression, true on line operation with pure sine wave output and zero transfer time to battery mode in on line double conversion mode, the SmartOnline SUINT2200LCD2U double conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment.

Pick your power strategy, from precise power for sensitive systems to the highest possible electrical efficiency, while ensuring 100% uptime. Choose from five selectable strategies: Max Efficiency, Max Quality, Frequency Regulation, Frequency Conversion and Auto Adaptive, which automatically offers increased efficiency when power conditions are good and enhanced power quality when power conditions are poor.

Six C13 outlets are split into two individually switchable load banks, one with three C13 outlets and the other with three C13 and one C19 outlet, allowing you to reboot select components or shed loads remotely. In addition to those seven outlets, this UPS provides two more C13 outlets in their own unswitched bank for powering critical components.

The field replaceable, hot swappable internal battery (RBC48S) provides 11.7 minutes of support at half load (990W) and 4.3 minutes at full load (1980W), keeping protected equipment operational through power failures. For mission critical applications demanding scalable extended runtime, the UPS supports smart external battery packs, such as Tripp Lite s BP48V27 2US (sold separately). Both the internal and external batteries are automatically sensed and configured during replacement to offer accurate runtime remaining and battery age notifications during outages. The intelligent battery management system with temperature compensated charging extends battery life.

Auto bypass mode keeps connected equipment powered and operational, even during UPS fault conditions.

By meeting strict EPA efficiency guidelines, this ENERGY STAR certified UPS system helps you save money and energy. A power saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.

Battery independent restart ensures automatic UPS power up without user interaction after lengthy power outages, even when batteries are expired and require replacement.

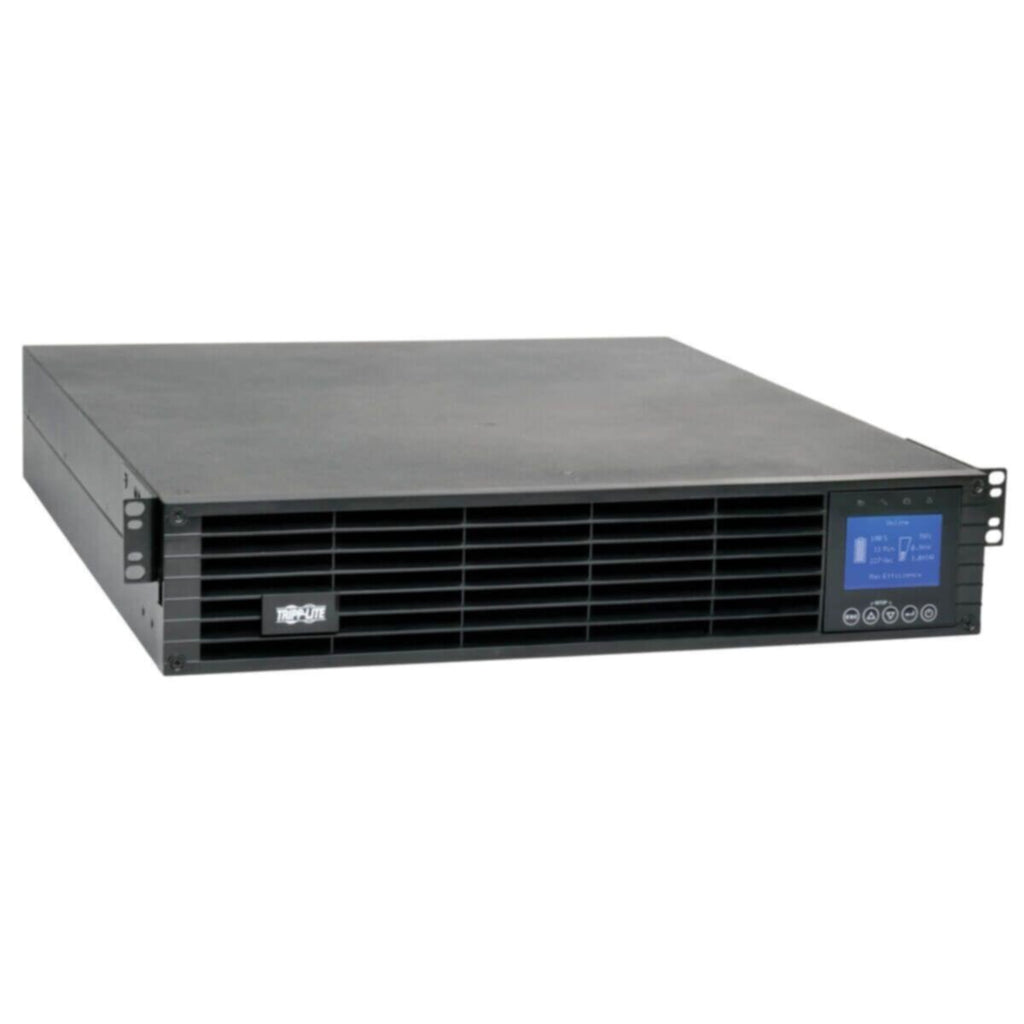

The front panel LCD screen reports UPS operating mode, detailed UPS status and site power information, as well as a variety of advanced UPS setup and configuration options. LEDs indicate AC input/output, battery and fault status.

RS 232 and HID compliant USB ports connect to a computer running Tripp Lite s free downloadable PowerAlert software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter shutdown. Cables are included.

The SUINT2200LCD2U includes a slot for an optional Java free HTML5 based WEBCARDLX (sold separately) that enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX 15.5.2 or later is required to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non responsive network devices.

Hardware is included for mounting the UPS system in 2U of space in an EIA standard 19 inch 4 post rack. Use the optional 2POSTRMKITWM (sold separately) for 2 post rack mounting or the optional 2 9USTAND (sold separately) for mounting in an upright tower position. The C20 power inlet accepts a variety of user supplied input cords.

• Deliver perfectly regulated sine wave output to mission critical equipment
• Protect connected components from dangerous surges, spikes and line noise
• Keep equipment operational through power failures
• Allow time to save data and safely shut down components in case of a prolonged blackout

Package Includes

• SmartOnline Double Conversion UPS
• USB cable
• RS 232 cable
• EPO cable
• C19 to-C20 power cable
• (2) C13 to-C14 power cables
• 4 post rack mounting hardware
• Owner s manual

Specifications

OVERVIEW

• UPC Code: 037332183330
• UPS Type: On Line

OUTPUT

• Output Volt Amp Capacity (VA): 2200
• Output kVA Capacity (kVA): 2.2
• Output Watt Capacity (Watts): 1980
• Output kW Capacity (kW): 1.98
• Power Factor : 0.9
• Crest Factor : 3:1
• Nominal Voltage Details: Nominal output voltage is user configured on first power on
• Frequency Compatibility: 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
• Frequency Compatibility Details: Output frequency matches input nominal on startup; Output capacity de rates by 30% during frequency conversion operation
• Output Voltage Regulation (Line Mode): +/- 2%
• Output Voltage Regulation (Economy Line Mode): +/- 10%
• Output Voltage Regulation (Battery Mode): +/- 2%
• Included Output Power Cables: Includes 2 C13 to C14 and 1 C19 to C20 power cables Load Management Receptacles : Two switchable outlet load banks (Bank 1: 3 C13 outlets / Bank 2: 1 C19 + 3 C13 outlets)
• Output AC Waveform (AC Mode): Pure Sine wave
• Output AC Waveform (Battery Mode): Pure Sine wave
• Output Capacity Details: DE RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 1386 watts for 208/220/230/240V output voltages; Max output is 1584W (1108W in Frequency Conversion mode) at 200V output voltage OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).
• Nominal Output Voltage(s) Supported: 200V; 208V; 220V; 230V; 240V
• Output Receptacles: (8) C13; (1) C19
• Individually Controllable Load Banks : Yes

INPUT

• Rated input current (Maximum Load): 10.94A
• Nominal Input Voltage(s) Supported: 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
• UPS Input Connection Type: C20 inlet
• Input Phase: Single Phase

BATTERY

• Full Load Runtime (min.) : 4.3 min. (1980w)
• Half Load Runtime (min.) : 11.7 min. (990w)
• Expandable Battery Runtime: Supports extended runtime with optional external battery packs
• External Battery Pack Compatibility : BP48V24 2U (limit 1); BP48V27 2US (multi pack compatible); BP48V60RT 3U (multi pack compatible)
• DC System Voltage (VDC): 48
• Battery Recharge Rate (Included Batteries): Less than 3.0 hours from 10% to 90% (typical, full load discharge)
• Internal UPS Replacement Battery Cartridge: RBC48S
• Battery Access: Front panel battery access door
• Battery Replacement Description: Hot swappable, replaceable batteries
• Expandable Runtime: Yes

VOLTAGE REGULATION

• Voltage Regulation Description: Online, double conversion power conditioning
• Overvoltage Correction : 2% output voltage regulation during overvoltages to 288V
• Undervoltage Correction : 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)

USER INTERFACE, ALERTS & CONTROLS

• Front Panel LCD Display: Interactive front panel LCD interface reports UPS operating mode, detailed UPS status and site power information; LCD interface also enables a variety of advanced UPS setup and configuration options
• Switches: 5 front panel switches: On/Off, Up, Down and Escape
• Alarm Cancel Operation: Power fail alarm can be silenced by following on screen prompts
• Audible Alarm: Audible alarm indicates power failure, low battery, overload and fault
• LED Indicators: 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)

SURGE / NOISE SUPPRESSION

• UPS Dataline Suppression Details: Single line dialup / network dataline protection included
• EMI / RFI AC Noise Suppression : Yes
• AC Suppression Joule Rating : 936
• AC Suppression Response Time : Instantaneous

PHYSICAL

• Cooling Method: Fan
• Included Mounting Accessory Description: Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
• Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
• Installation Form Factors Supported with Optional Accessories: 2 post rackmount ( 2POSTRMKITWM ); 2 4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short depth ( 4POSTRAILKITWM ); Tower ( 2 9USTAND ); Wallmount ( 2POSTRMKITWM )
• Minimum Required Rack Depth with External Battery Pack (cm): 67
• Minimum Required Rack Depth with External Battery Pack (in.): 26.53
• Minimum Required Rack Depth without External Battery Pack (cm): 59
• Minimum Required Rack Depth without External Battery Pack (in.): 23.03
• Optional Mounting Accessory Notes: Optional 2 9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall mount and 2 post rackmount installation; 4POSTRAILKITWM enables installation in 4 post short depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4 post racks using front vertical rails only, without rear support
• Primary Form Factor: Rackmount
• Primary UPS Depth (mm): 496
• Primary UPS Height (mm): 88
• Primary UPS Width (mm): 438
• Rack Height: 2U
• Shipping Dimensions (hwd / cm): 24.00 x 56.49 x 70.00
• Shipping Weight (kg): 29.03
• UPS Housing Material: Metal
• UPS Power Module Dimensions (hwd, cm): 8.79 x 43.79 x 49.61
• UPS Power Module Weight (kg): 23.11

ENVIRONMENTAL

• Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
• Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
• Relative Humidity: 5 to 95%, non condensing
• AC Mode BTU / Hr. (Full Load) : 675
• AC Economy Mode BTU / Hr. (Full Load): 356
• Battery Mode BTU / Hr. (Full Load) : 1012
• AC Mode Efficiency Rating (100% Load): >90%
• AC Economy Mode Efficiency Rating (100% Load): >95%
• Audible Noise: <50dB at front side 1M
• Operating Elevation (m): Up to 3000m

COMMUNICATIONS

• Network Management Cards: SNMPWEBCARD ; WEBCARDLX
• PowerAlert Software: For local monitoring via the UPS s built in communication ports, download PowerAlert Local software at poweralert
• Communications Cable: USB and DB9 cabling included
• WatchDog Compatibility: Supports Watchdog application, OS and hard reboot restart options for remote applications
• Communications Interface: USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface

LINE / BATTERY TRANSFER

• Transfer Time : No transfer time (0 ms.) in online, double conversion mode; 2 12 ms. transfer time during economy mode operation
• Low Voltage Transfer to Battery Power (Setpoint): 160V (100% load), 140V (66% load), 120V (33% load)
• High Voltage Transfer to Battery Power (Setpoint): 288V

SPECIAL FEATURES

• Grounding Lug: Back panel grounding lug included
• Cold Start (Startup in Battery Mode During a Power Failure): Cold start operation supported
• High Availability UPS Features: Automatic inverter bypass; Battery Independent Restart; Hot swappable batteries
• Green Energy Saving Features: High efficiency economy mode operation; Individually controllable load banks

CERTIFICATIONS

• UPS Certifications: CE; ENERGY STAR Qualified; Tested to CSA (Canada); Tested to EAC (Belarus, Kazakhstan, Russia); Tested to SASO (Saudi Arabia); Tested to UL1778 (USA)
• UPS Certification Details: IEC62040 1:2008+A1; UL1778 5th; Meets EMI approvals IEC62040 2:2006; FCC Part 15

WARRANTY

• Product Warranty Period (Worldwide): 2 year limited warranty
