Five of the nine models in the DGS 1210 series family support Power over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS 1210-10P, DGS 1210-10MP, DGS 1210-28P, DGS 1210-28MP and DGS 1210-52MP. Using the switch s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

The DGS 1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

The DGS 1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

D Link's innovative Safeguard Engine protects switches against traffic flooding and virus attacks. 802.11X port based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.

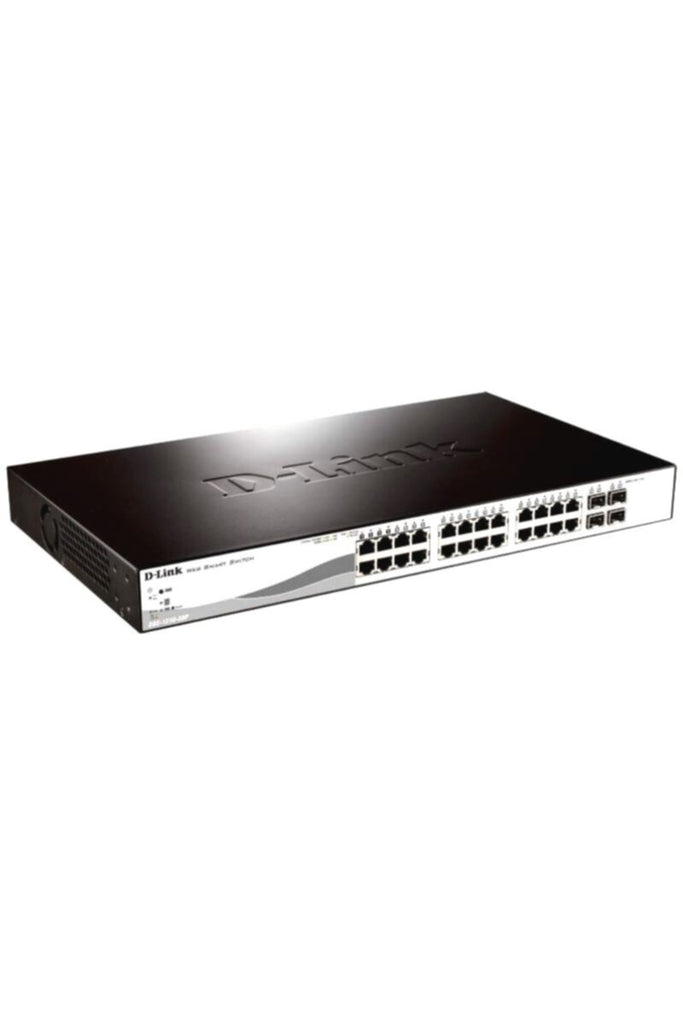

• 24 x 10/100/1000BASE T PoE ports

• 4 x Gigabit RJ45/SFP Combo ports

• Advanced L2 switching and security features

• L2+ Static Routing

• Optional standard mode or surveillance mode management user interface

• 193 W PoE budget
