Max. motor rating (W): 500 Max. flow rate (l/h): 9500 Delivery temperature, max. ( C): 35 Delivery height / Max. pressure (m/bar): 7 / 0,7 Max. grain size (mm): 20 Max. immersion depth (m): 7 Min. residual water, manual (mm): 25 Residual water height (mm): 25 Connection thread: G1 Pressure side connection thread: G1 internal thread Power cable (/m): H05RN F / 10 Voltage (V): 230 240 Frequency (Hz): 50 Dimensions (L — W — H) (mm): 229 x 238 x 303 Weight without accessories (kg): 4,7

Equipment

Comfortable carrying handle Hose connection piece, 1 1/4'' Easy hose connection thanks to Quick Connect Switching between manual/automatic operation, Possibility of fixing the float switch The flexible, height adjustable float switch In automatic operation (auto), the pump automatically switches with the water level In manual operation, the pump runs continuously until the minimum quantity of residual water is reached

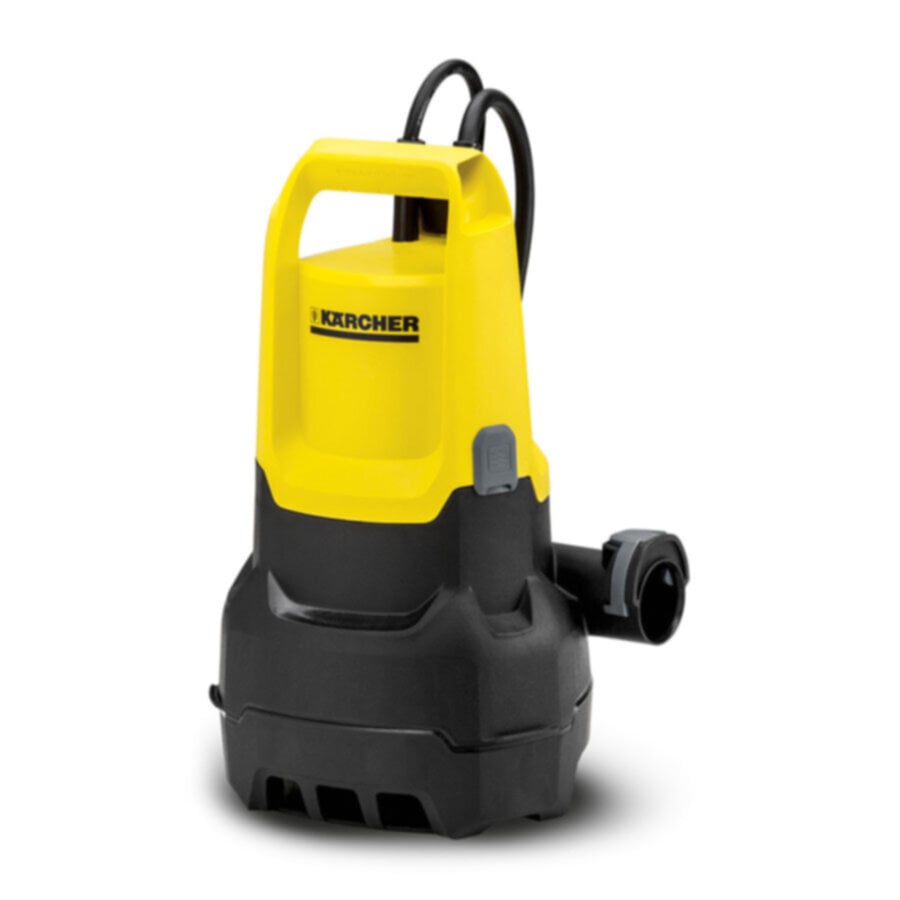

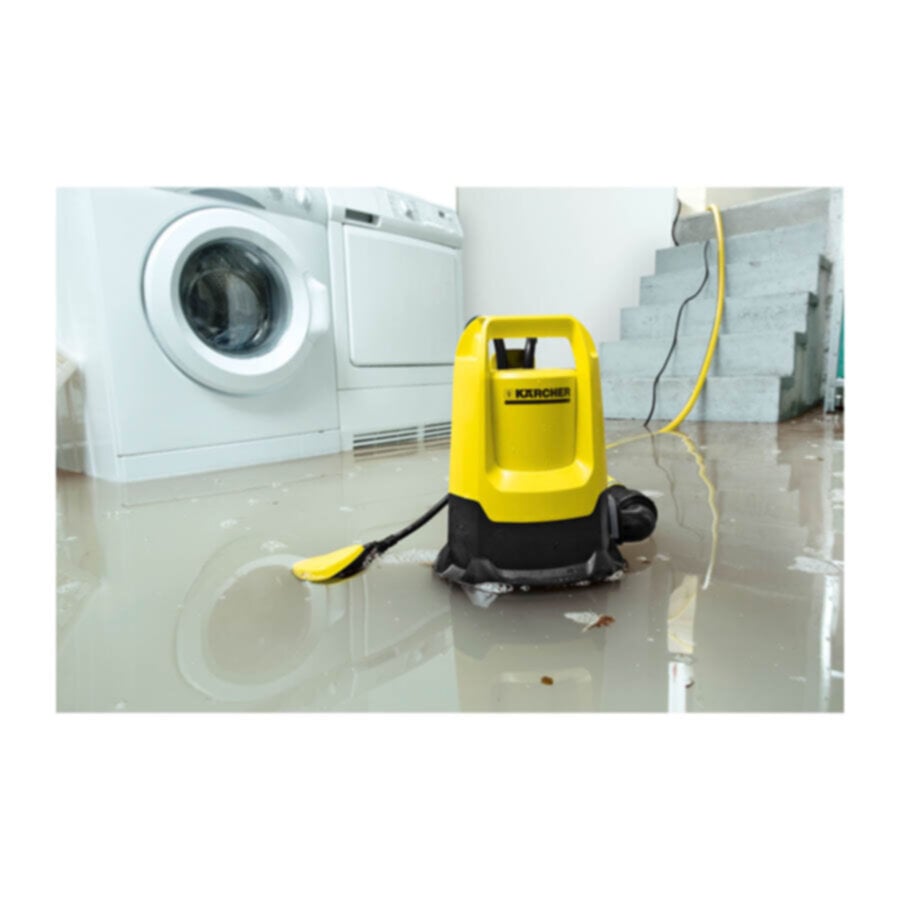

Larger water volumes are its specialty: the SP 5 Dirt dirty water pump, with a maximum capacity of 9,500 l/h, reliably pumps dirty water with dirt particles up to 20 millimeters in size, e.g. from garden ponds or flooded cellars. For larger dirt, an optional prefilter protects against blockages. The slide ring sealing, which is familiar from the professional sector, has been installed to extend the lifetime of the device. The submersible pump has a float switch for automatically switching on and off. In addition, the float is fixed to a rail and is vertically adjustable. This allows water to be pumped out at a lower level. In manual mode, it can even pump out down to a residual water level of 25 millimeters. And the Quick Connect connection thread enables particularly quick and uncomplicated connection of 1 1/4" hoses.

Ceramic face seal.

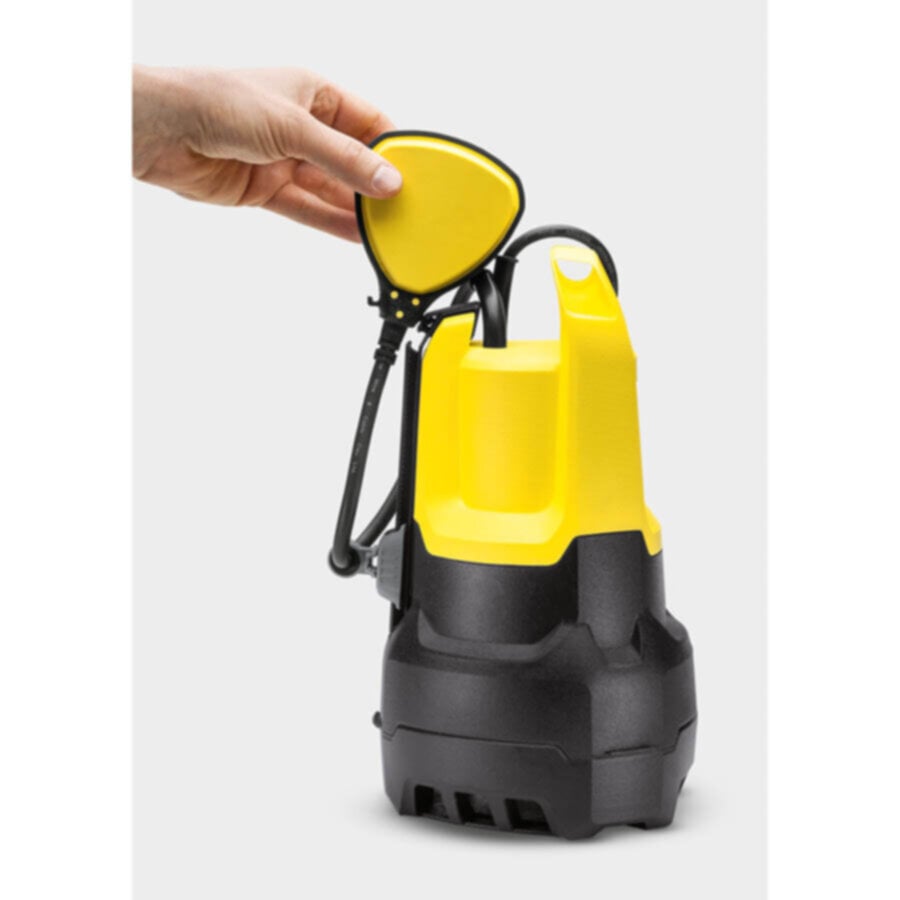

Height adjustable float switch.

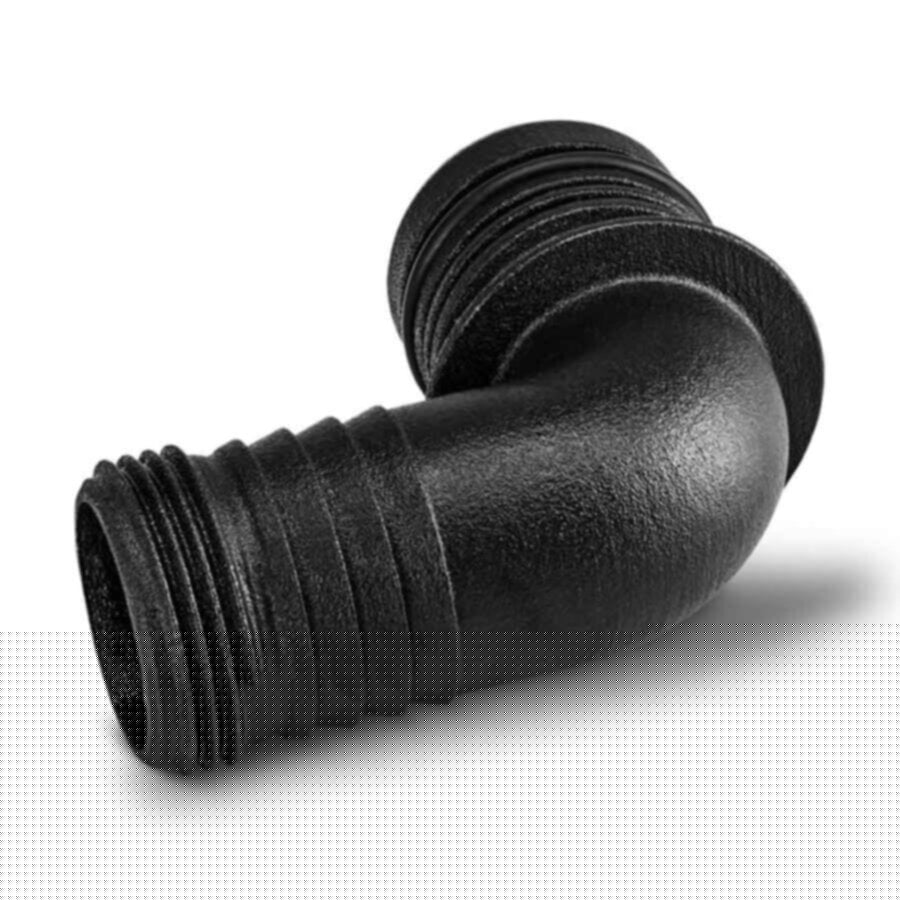

Quick Connect.
