• Tool Holder SDS Max Max. Drilling Capacity [Concrete] 48 mm
• Max. Drilling Capacity [Breakthrough bit] 80 mm
• Max. Drilling Capacity [Core bit] 115 mm
• Power Input 1350 Watts
• Power Output 840 Watt
• Impact energy (EPTA 05/2009) 11 J
• Load Speed 132 265 rpm
• Blows per Minute 1225 2450 bpm
• Length 528 mm
• Height 268 mm
• Width 116 mm
• Weight 8.7 kg
• Hand/Arm Vibration " Hammer drilling into concrete 8.9 m/s
• Uncertainty K 1 (Vibration) 1.5 m/s
• Hand/Arm Vibration " Chiselling 8.1 m/s
• Uncertainty K 2 (Vibration) 1.5 m/s
• Sound Pressure 96 dB(A)
• Sound Pressure Uncertainty 3 dB(A)
• Sound Power 107 dB(A)
• Sound Power Uncertainty 3 dB(A)

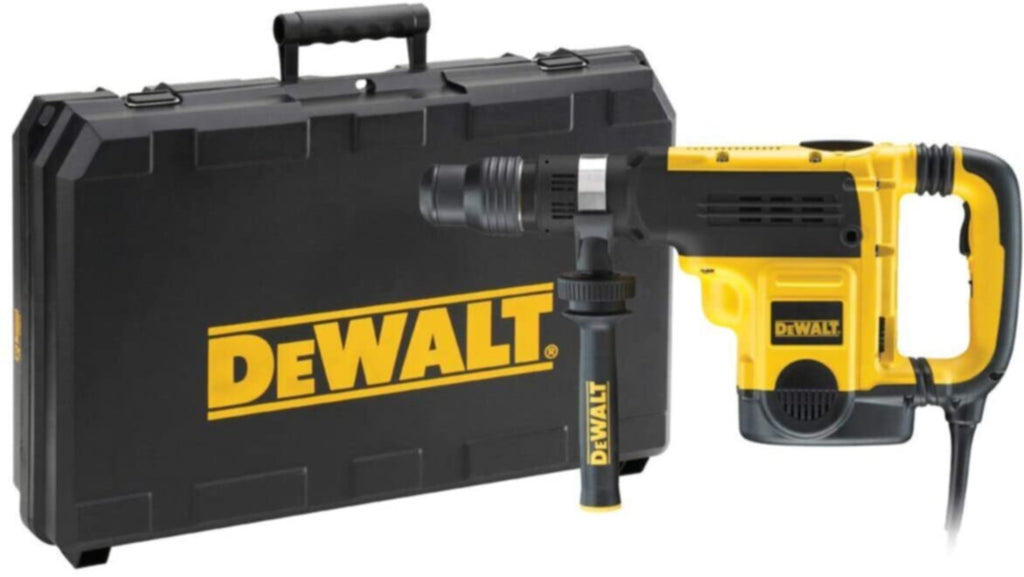

WHAT'S INCLUDED?

• Kit Box
• 2 Position Side Handle
• User Guide

• Ideal for drilling anchor fixing and through holes in concrete and masonry from 12 to 48 mm in diameter. Core drilling up to 115 mm

• Active vibration control system incorporating a floating rear handle and damped side handle to reduce vibration

• Ergonomic; compact and slimline design maximizes control and offers easy access to confined spaces

• Electronic variable speed and impact energy control

• Lock on switch for chipping

• Rotation stop for demolition applications in brick; masonry and light chasing in concrete

• Brush wear and service indicators
