Specifications

• Number of Channels: 4
• Maximum Power Output: 400W
• Maximum Power Output at 4 : 100W x 4
• Nominal Power (RMS) Output at 2 : 45W x 4
• Nominal Power (RMS) Output Bridged at 4 : 90W x 2
• Amplifer Class: Class FD
• Maximum Power Output at 2 : 100W x 4
• Fuse Rating: 15 Amps
• Signal to-Noise (SN) Ratio: 75 dB

Description

Compact Design

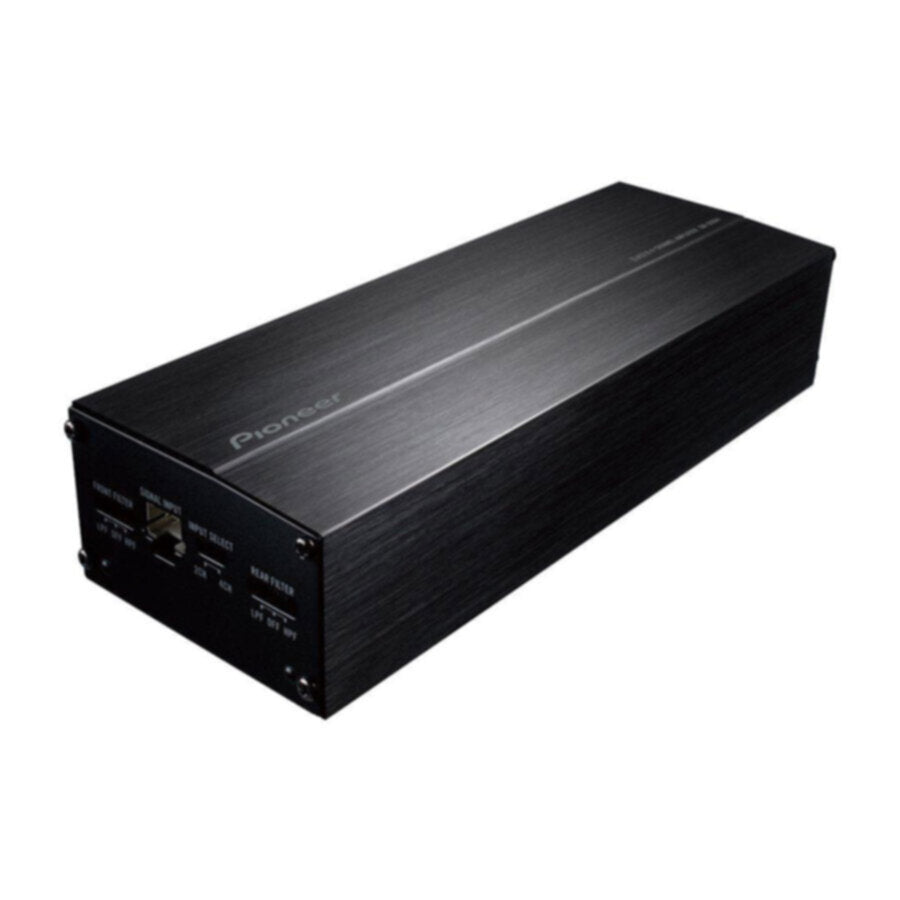

Whether you call it "compact" or "micro" the GM D1004 will wear the name proudly. With the size equivalent to slightly smaller than a standard red brick, you" ll have no problem finding a place to mount it or conceal it behind our short chassis Digital Media Receivers stereos, glove box or even in the center console.

Small But Powerful

It may be small but don" t let the size fool you. The GM D1004 is capable of delivering up to 400 Watts of maximum output and is more than comfortable providing 45 Watts of power per channel, that" s more than enough to improve the performance of your factory or aftermarket speakers.

Flexible Connectivity

For DIYers, the GM D1004 amplifier is not only small and powerful but it" s easy to install. Simply connect power and ground at the radio and get more installation flexibility using hi level or low level inputs with a signal sensing remote turn on so you can use it in combination with a factory or aftermarket head unit.
